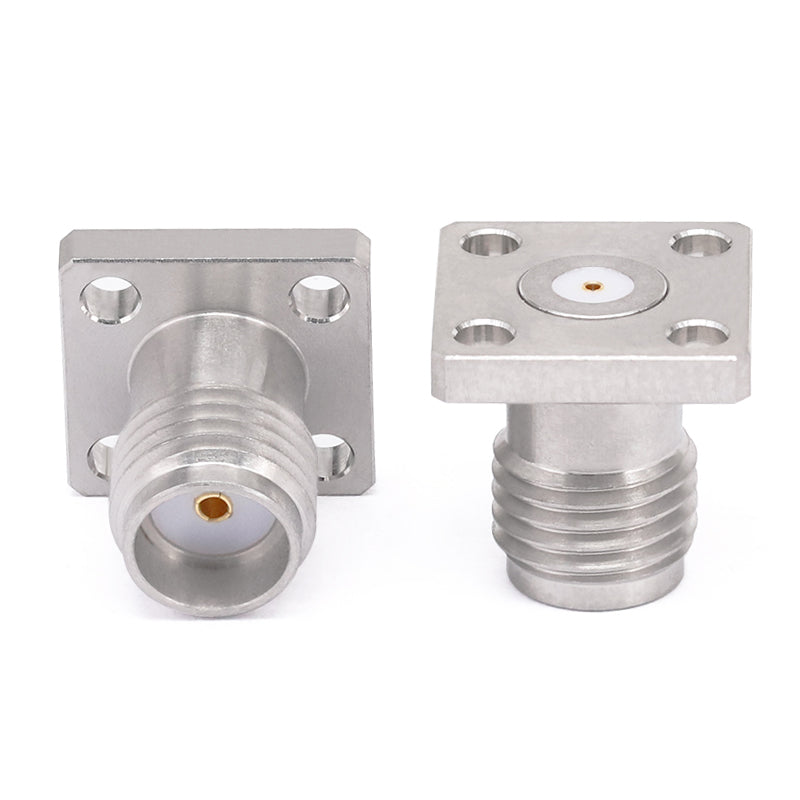

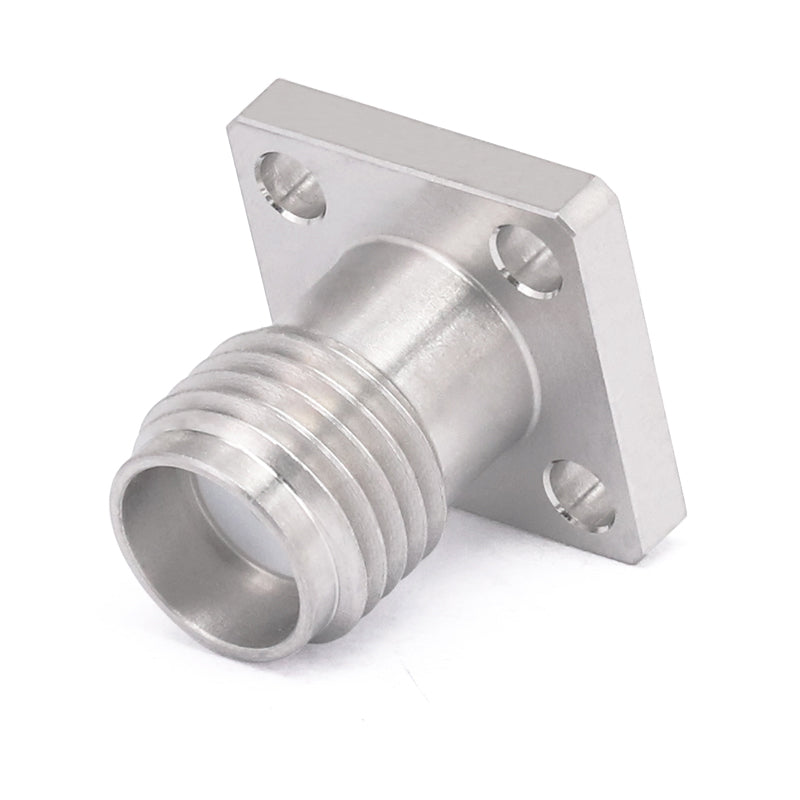

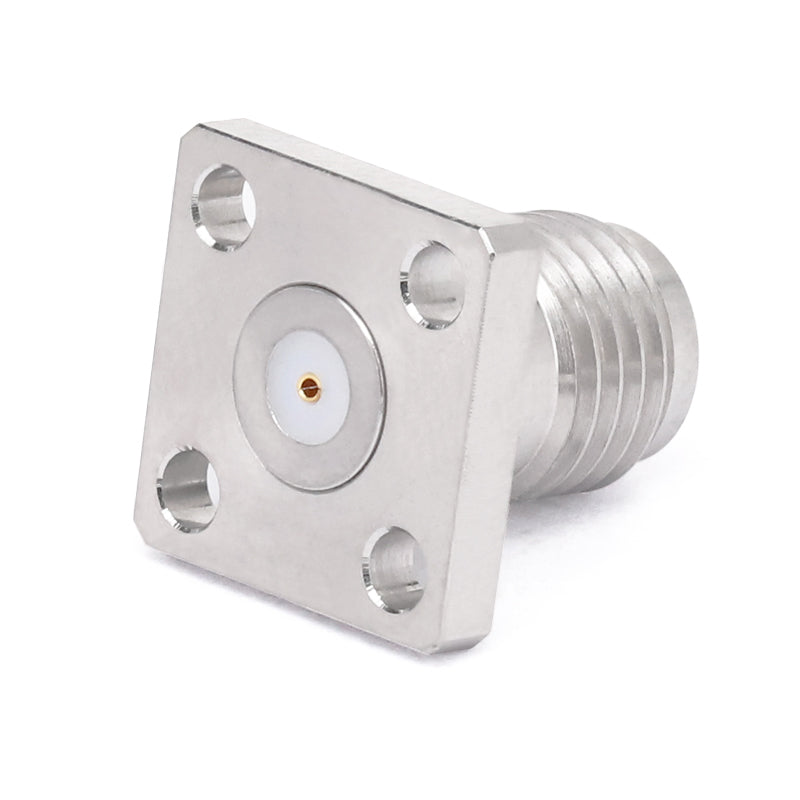

SMA Female Field Replaceable Connector 4-Hole Flange,6.35mm Hole Spacing, DC-26.5GHz
These are a group of SMA female field replaceable connectors with 4-hole flange. The flange size is 9.5mm and the space of flange hole is 6.35mm.The acceptable pin diameters are 0.23mm, 0.30mm, 0.38mm, 0.46mm and 0.51mm. They are used with glass beads of corresponding size and available with both male and female connector types.
Part Number List:
| SMA-KFD0223 | Accepts Pin Diameter：0.23mm |
| SMA-KFD0230 | Accepts Pin Diameter：0.30mm |
| SMA-KFD0238 | Accepts Pin Diameter：0.38mm |
| SMA-KFD0246 | Accepts Pin Diameter：0.46mm |
| SMA-KFD0251 | Accepts Pin Diameter：0.51mm |
Specifications:
| Frequency | DC-26.5GHz |
| Insertion Loss | ≤ 0.1 xSqt.(f_GHz) dB |
| VSWR | 1.15 |
| Body Material | Stainless Steel |
| Mount Method | 4-Hole Flange |
| Flange Size | 9.5mm |
| Hole Spacing | 6.35mm |
| Hole Siz | 1.7mm |
| Operation Temp. | -40~+85deg. |
Reliable Connectivity with 4-Hole Flange Connectors from Gwave Technology Inc
High-quality connectivity solutions for demanding applications are our specialty at Gwave Technology Inc. We design our 4-hole flange connectors for telecommunications, aerospace, defence, and industrial applications to function well and reliably.
Why Choose Our 4-Hole Flange Connectors?
Our 4-hole flange connectors offer reliable connections in demanding settings. Due to their sturdy construction and accurate engineering, these connections function well in difficult environments.
Key Features and Benefits:
Secure mounting: The 4-hole flange secures and stabilizes mounting on panels or enclosures, preventing connection failure and assuring constant performance.
Excellent Performance: Our connections are designed for low signal loss and optimal transmission, ensuring signal integrity and dependability in high-frequency applications.
Versatile uses: Flexible and adaptable for telecommunications, aerospace, and industrial systems.
Built to Perfection
To assure longevity and performance, Gwave Technology Inc. makes 4-hole flange connectors from high-quality materials. Our connectors provide stable and efficient connectivity due to our innovation and quality.
Choose Gwave Technology Inc. for interconnects. Try our 4-hole flange connectors and discover our excellent quality and reliability. Trust us to deliver sophisticated solutions for your essential applications.
We Also Recommend
FAQs
What are the advantages of using a 4 Hole Flange Connector?
The main advantage of a 4 Hole Flange Connector is improved mechanical stability and secure attachment, which means it can be used in environments requiring high durability. Its features include the improvement of signal integrity and reliable attachment to the connection with particular applications such as wireless communication, instrumentation, and testing at high frequencies.
What materials are used in 4 Hole Flange Connector?
The 4 Hole Flange Connectors are created from some of the highest grades of metals, which may include but are not limited to brass, stainless steel, and copper. These materials exhibit outstanding conductivity, corrosion-resistant capacity as well as durability to meet the requirements of different applications of high frequency and high performance.
What is a 4 Hole Flange Connector?
With a variety of an electrical connector, the 4 Hole Flange Connector, is specially designed for secure mounting and easy installation in a system that requires high-frequency signal transmission. It possesses four holes for firm attachment to a PCB, panels, and other surfaces.
How to Install a 4 Hole Flange Connector?
Mount the 4 Hole Flange Connector, ensuring accurate alignment of holes with the mounting points on your device or PCB. Mount it with screws-a tighter fit helps to avoid open contacts and possible signal loss or interference.
How to Troubleshoot a 4 Hole Flange Connector?
The first steps in solving a 4 Hole Flange Connector involve checking loose or broken connections, and continuity of the signal path with interruptions including corrosion and wear. As long as continuity exists then reconnect the connector for maximum efficiency.
