Loads

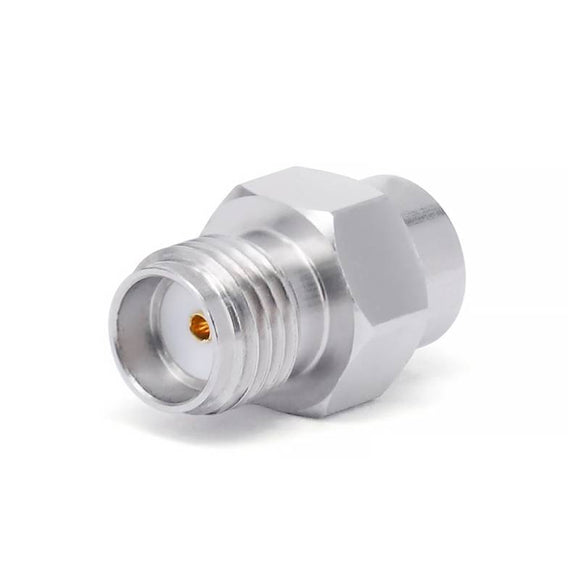

The SMA load or SMA termination is a device that absorbs unused signal energy at the end of a transmission line to prevent reflection and ensure signal integrity. It is mostly used in high-frequency RF systems to remove standing waves for better performance.

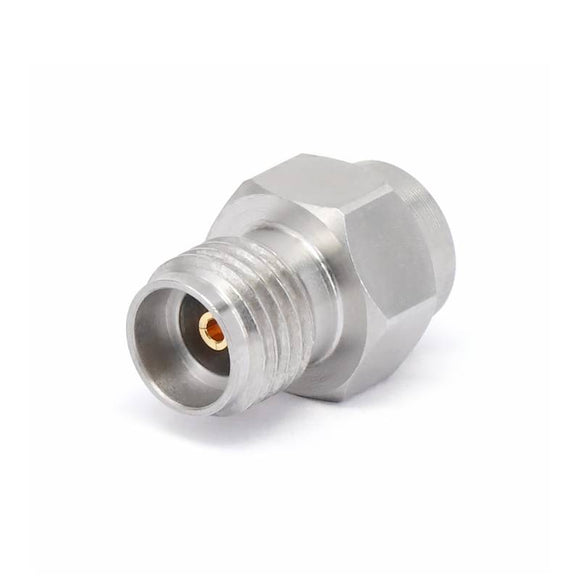

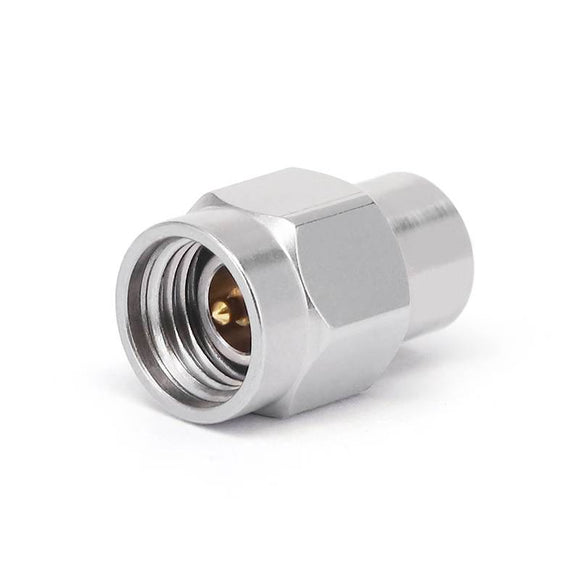

A 3.5mm load or 3.5mm termination guarantees proper impedance matching that prevents signal reflection and loss. This is especially important in audio systems as it ensures sound clarity, minimal distortion, and generally high-quality audio.

Correct termination of signals results in reduced loss and easier signal transmission without causing damage to the peripherals attached.

A 2.4mm load or 2.4mm termination is of utmost importance in high-frequency systems, so that signal absorption takes place appropriately. It removes all kinds of reflections and ensures impedance match across the circuits, thereby giving good quality of signal transmission minimizing interferences, and ensuring proper performance in advanced RF applications and telecommunication systems.

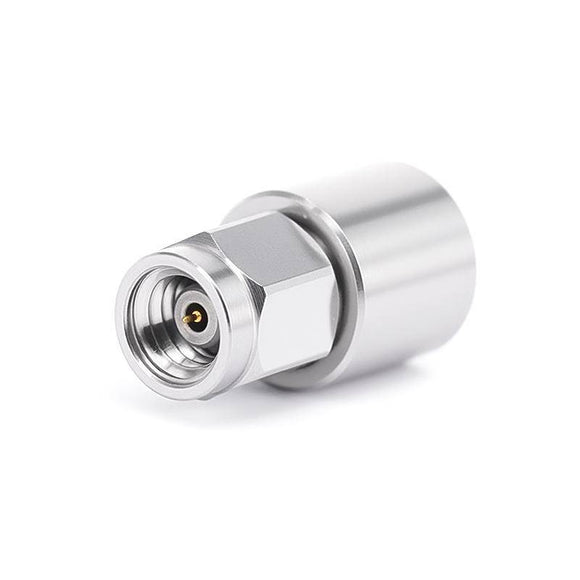

The 1.85mm load or 1.85mm termination is necessary for ensuring impedance uniformity in applications operating at microwave frequencies. It does so by ensuring signal integrity through reduction of signal reflection and reduction with minimal loss, which, therefore, enhances the overall performance of high-frequency RF components used in communication and measurement systems.

In their implementation, challenging tasks include maintaining consistent impedance at small sizes, as well as durability in compact configurations. Termination types also have strict manufacturing and care at installation to prevent possible signal loss or mismatch.
