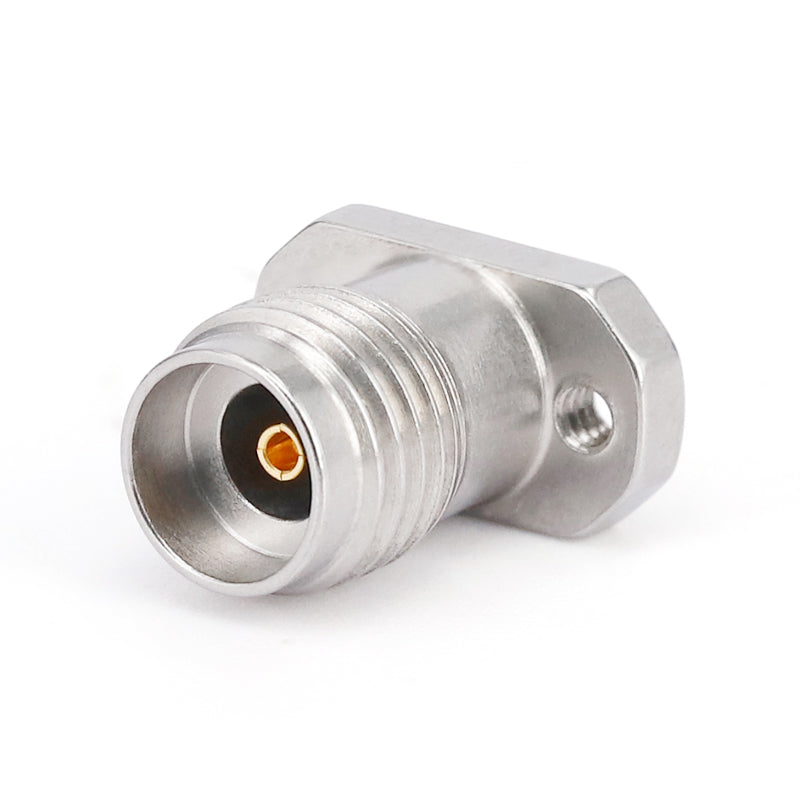

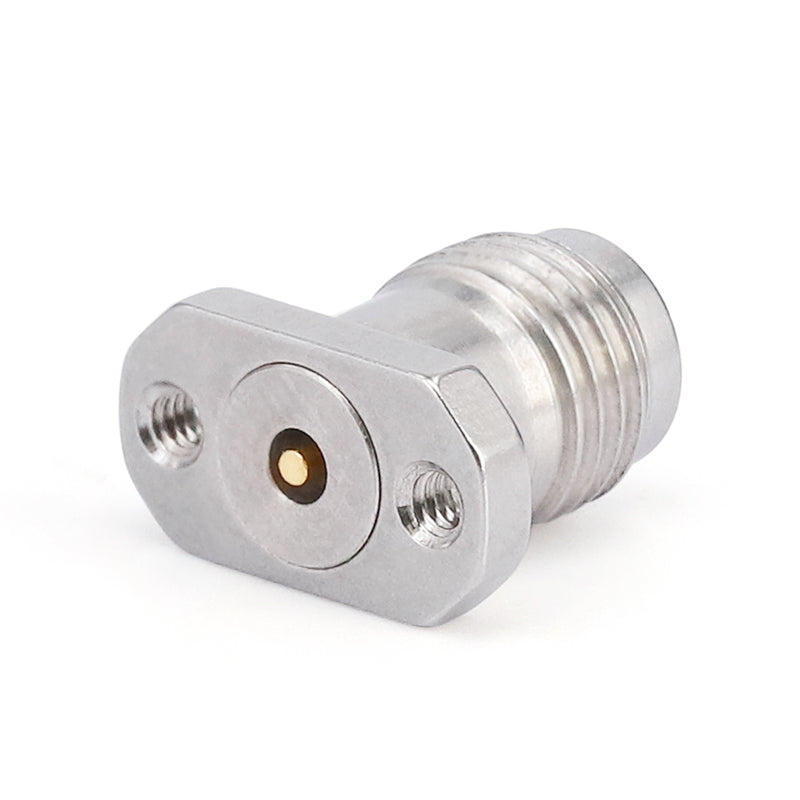

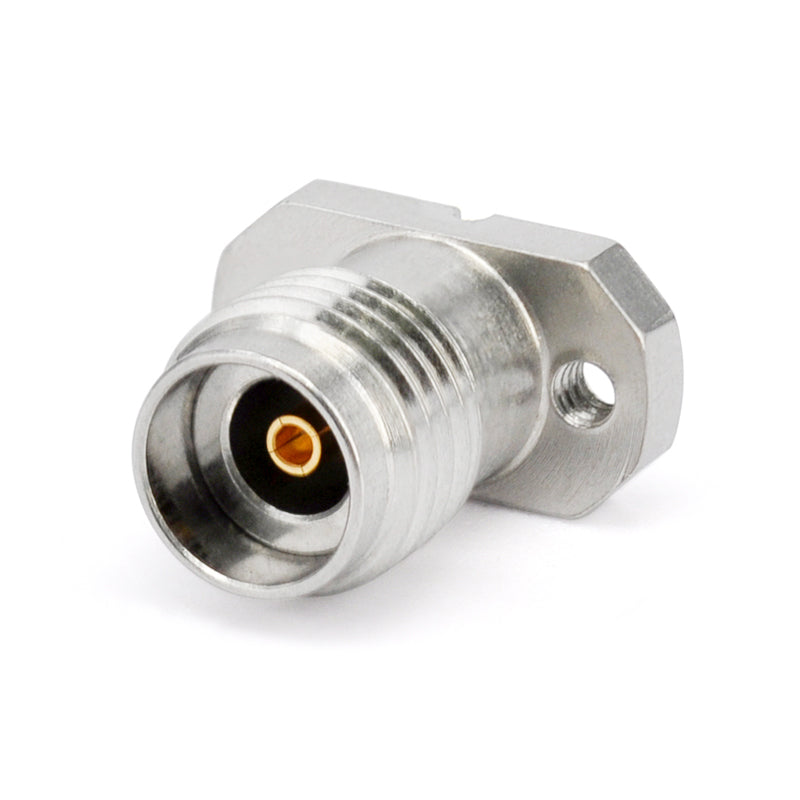

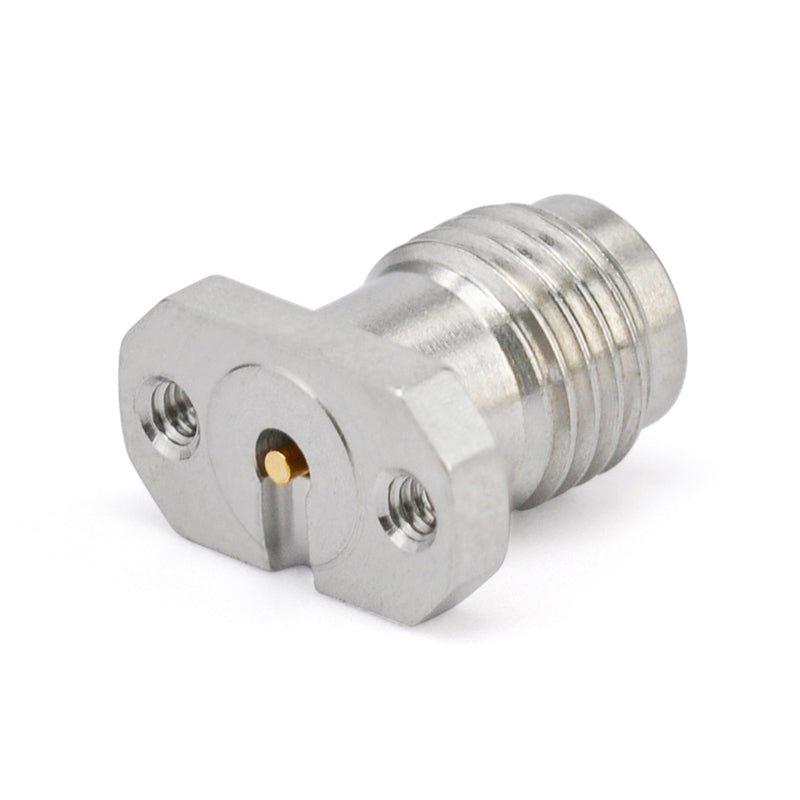

2.92mm Female Solderless PCB Compression Mount Connector,2-hole Flange,DC-40GHz
2.92mm Female Solderless PCB Compression Mount Connector,2-hole Flange,DC-40GHz
2.92mm Female Solderless PCB Compression Mount Connector,2-hole Flange,DC-40GHz
2.92mm Female Solderless PCB Compression Mount Connector,2-hole Flange,DC-40GHz

2.92mm Female Solderless PCB Compression Mount Connector,2-hole Flange,DC-40GHz

Shipping calculated at checkout.

Gwave provide 4 types 2.92mm female solderless connectors，as follows

Part Number List:

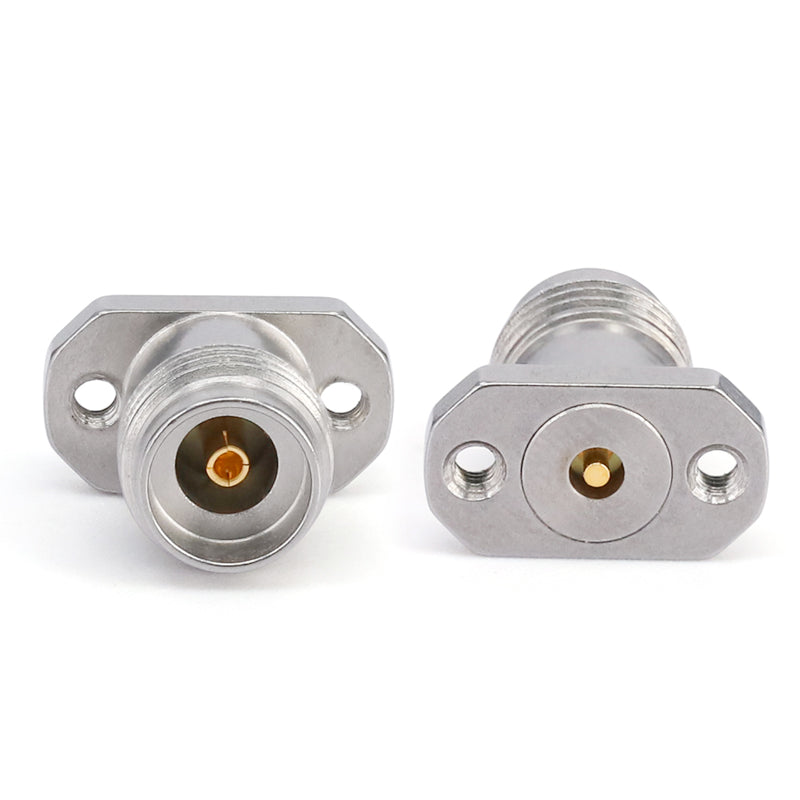

 2.92-KFD216 2.92mm Female  Solderless PCB Compression Mount Connector, CPW/Microstrip

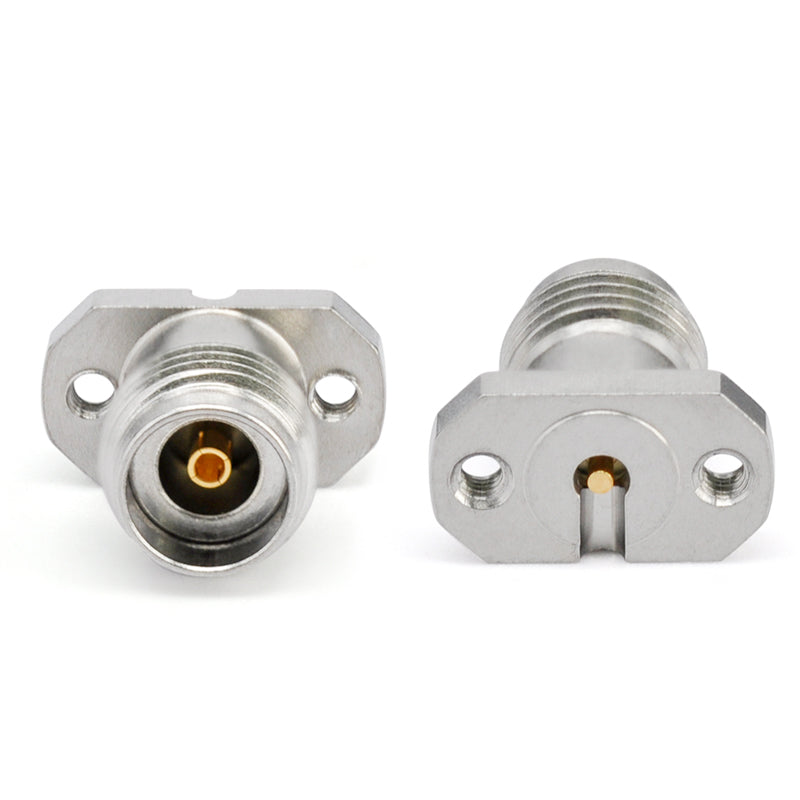

2.92-KFD216-1 2.92mm Female  Solderless PCB Compression Mount Connector, Stripline


Specifications:

 Frequency DC-40GHz
VSWR 1.20
Insertion Loss ≤0.05 xSqt.(f_Ghz)
Body Material Stainless Steel
Flange Size 10.2mmX5.7mm
Hole Spacing 7.15mm
Hole Size 1.6mm
Operation Temp. -40~+125deg.
