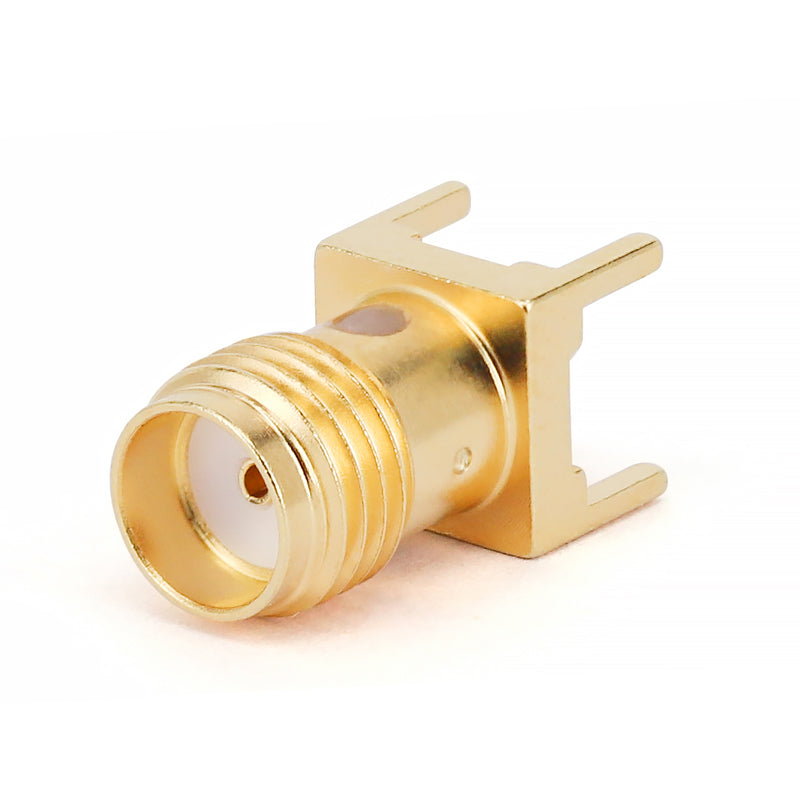

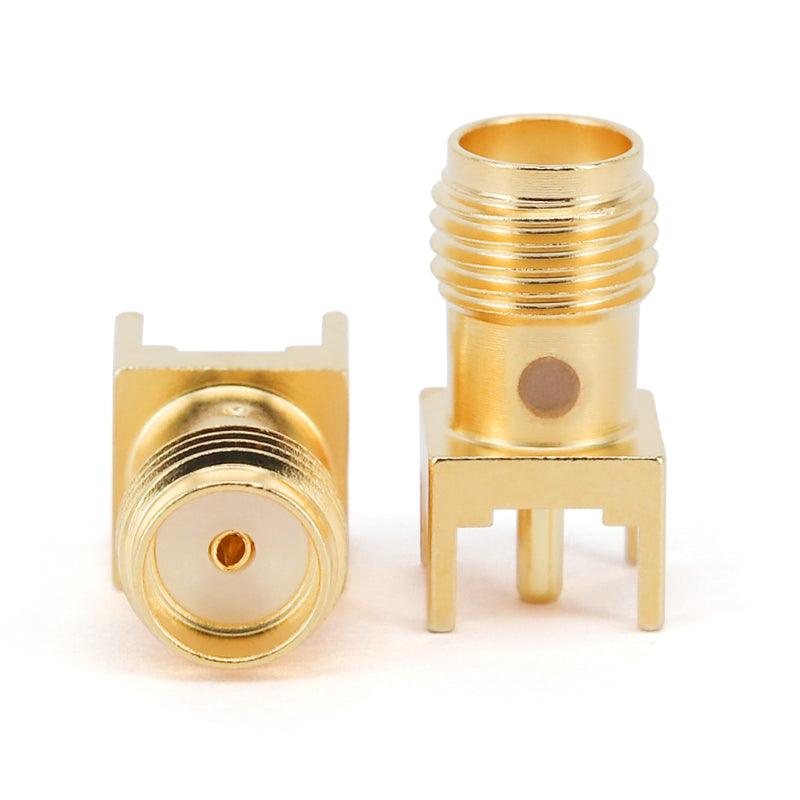

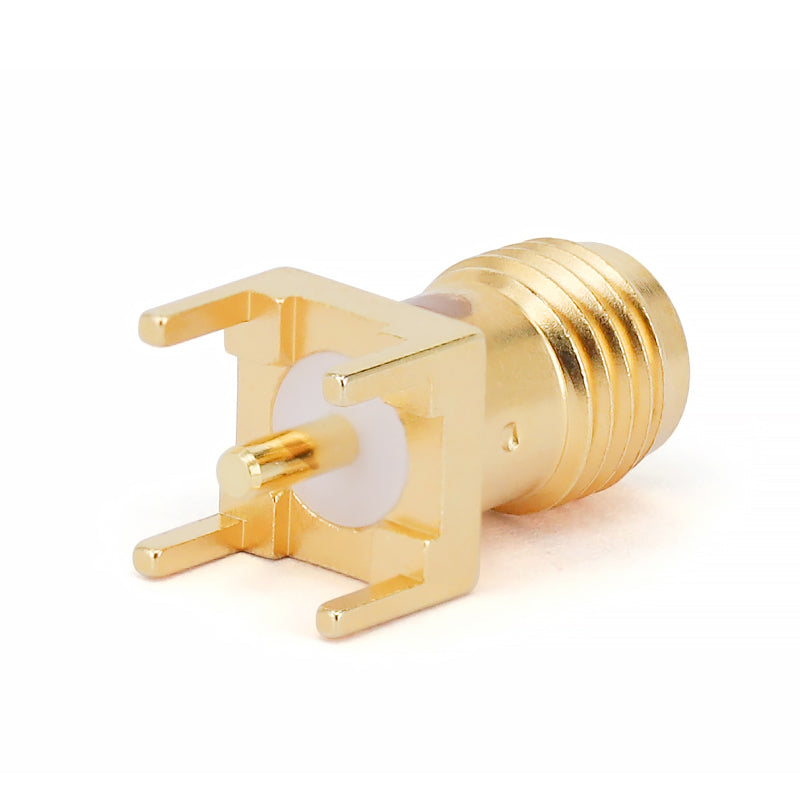

SMA Female PCB Mount Soldering Connector, Pad hole spacing 5.6mm, DC-18GHz

SMA Female PCB Mount Soldering Connector, Pad hole spacing 5.6mm, DC-18GHz

Shipping calculated at checkout.

Part Number List:

 SMA-KHD Pad hole spacing 5.6mm


Specifications:

 Frequency DC-18GHz
Insertion Loss (dB) ≤0.05 xSqt.(f_Ghz)
VSWR 1.25
Body Material Brass Gold Plated
Operation Temp. -40~+165deg.
