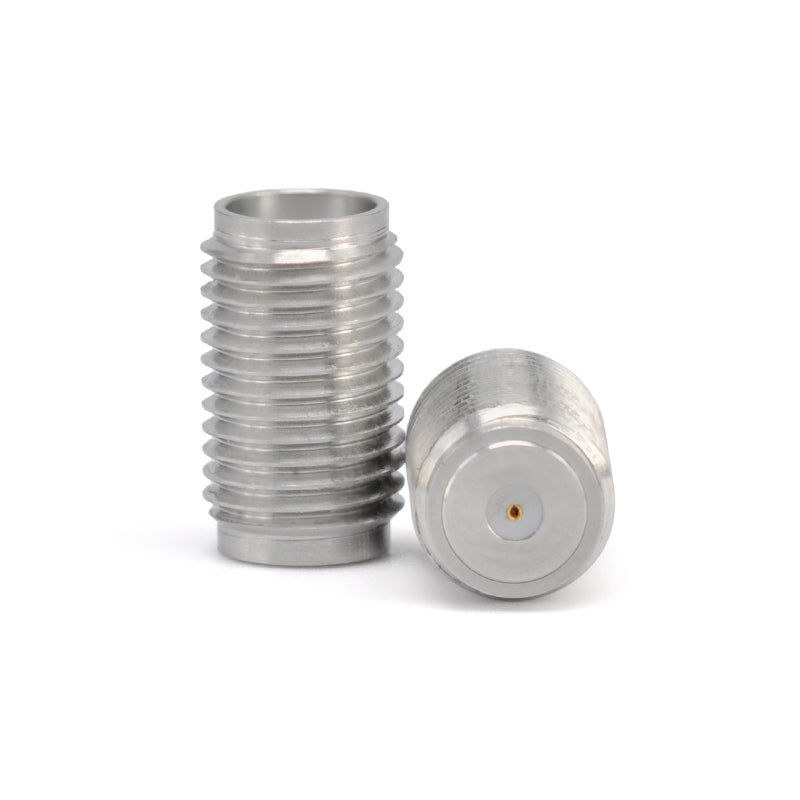

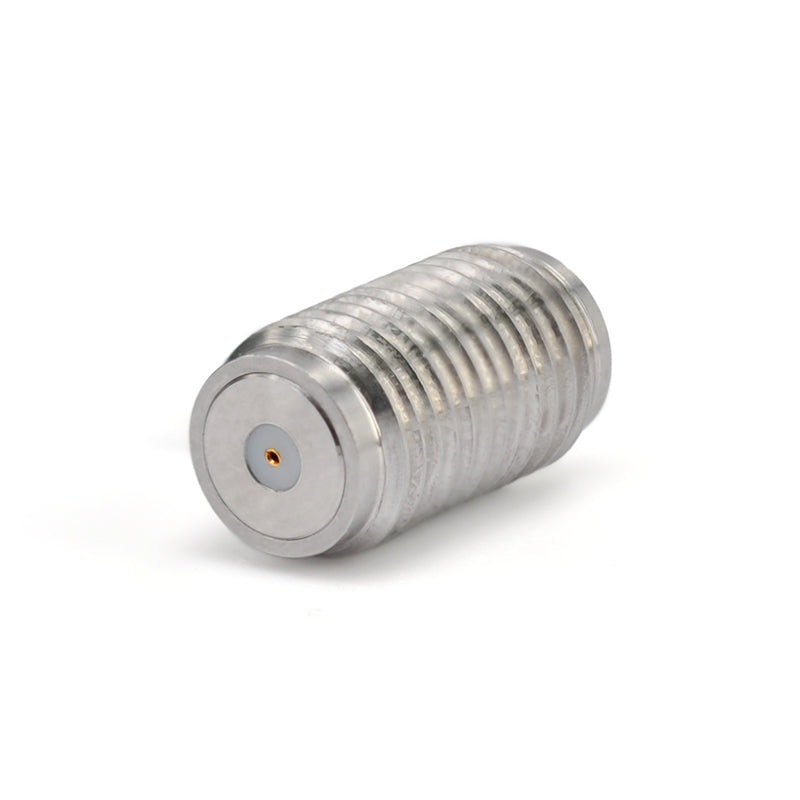

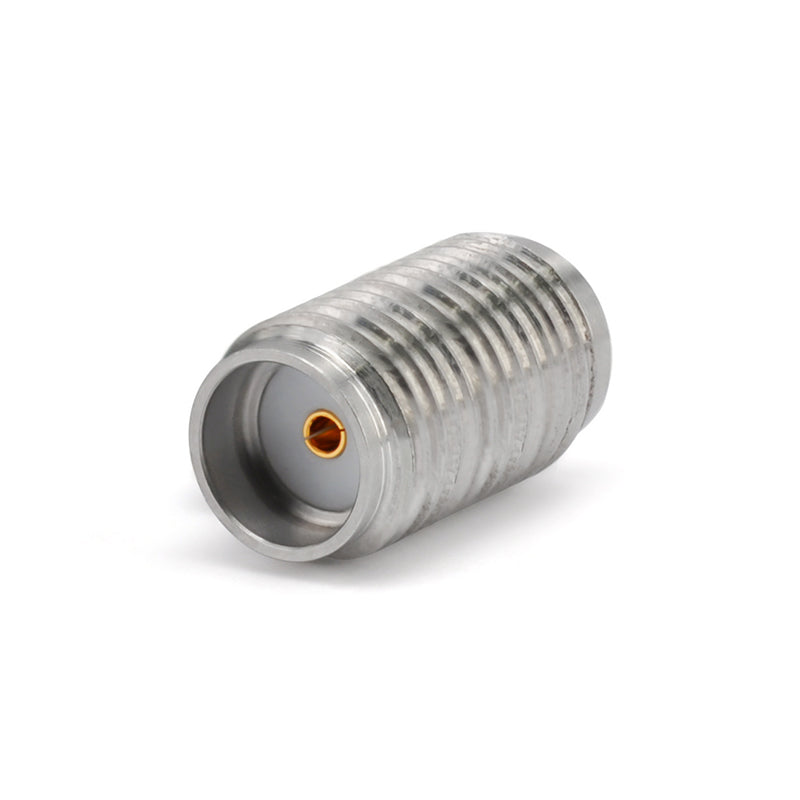

SMA Female Field Replaceable Connector with Bulkhead Flange,10.8 mm length, DC-26.5GHz

  • $5.45
    Unit price per
Shipping calculated at checkout.

These are a group of SMA female field replaceble connectors with Bulkhead flange. The flange length is 10.8 mm . The acceptable pin diameters are 0.23mm, 0.30mm, 0.38mm.0.46mm,0.51mm.They are used with glass beads of corresponding size and available with both male and female connector types.

Part Number List:

SMA-KYD0223 Accepts Pin Diameter:0.23mm
SMA-KYD0230 Accepts Pin Diameter:0.30mm
SMA-KYD0238 Accepts Pin Diameter:0.38mm
SMA-KYD0246 Accepts Pin Diameter:0.46mm
SMA-KYD0251 Accepts Pin Diameter:0.51mm


Frequency DC-26.5GHz
Insertion Loss  ≤ 0.1 xSqt.(f_GHz) dB
VSWR 1.15
Body Material Stainless Steel
Mount Method Bulkhead
Operation Temp. -55~+165deg.
