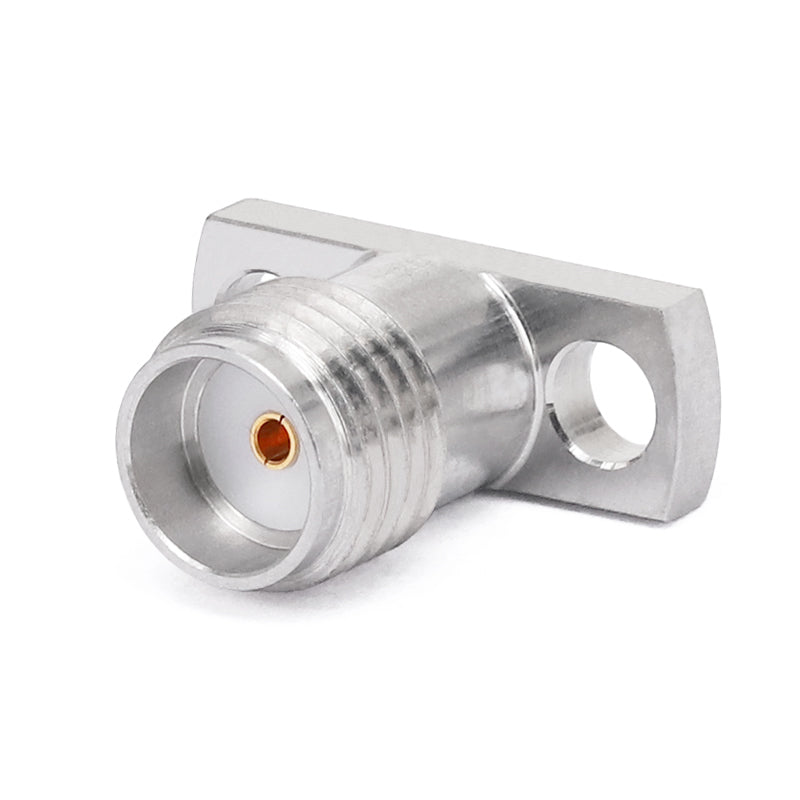

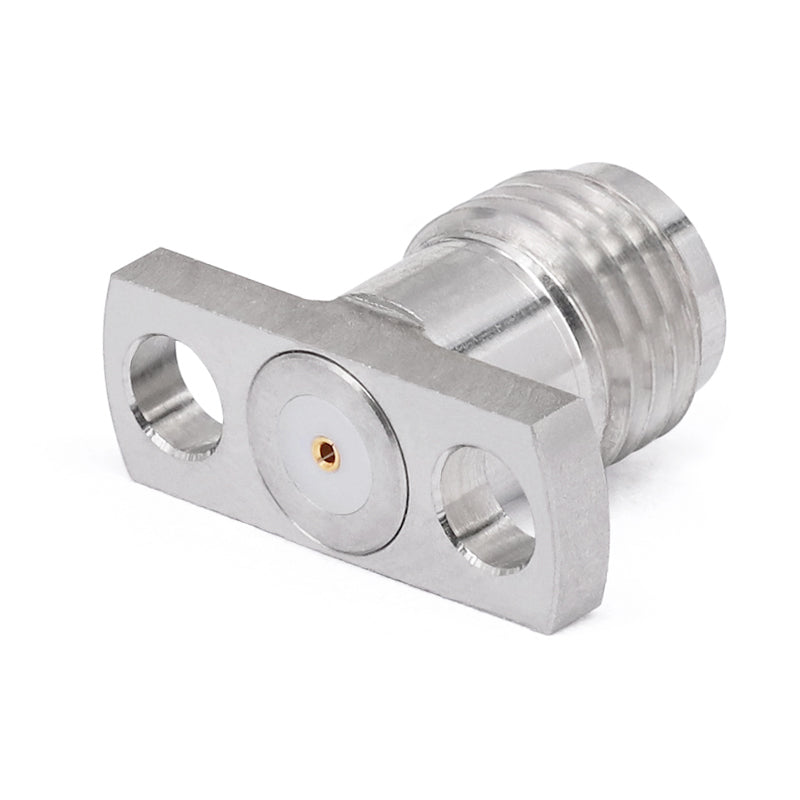

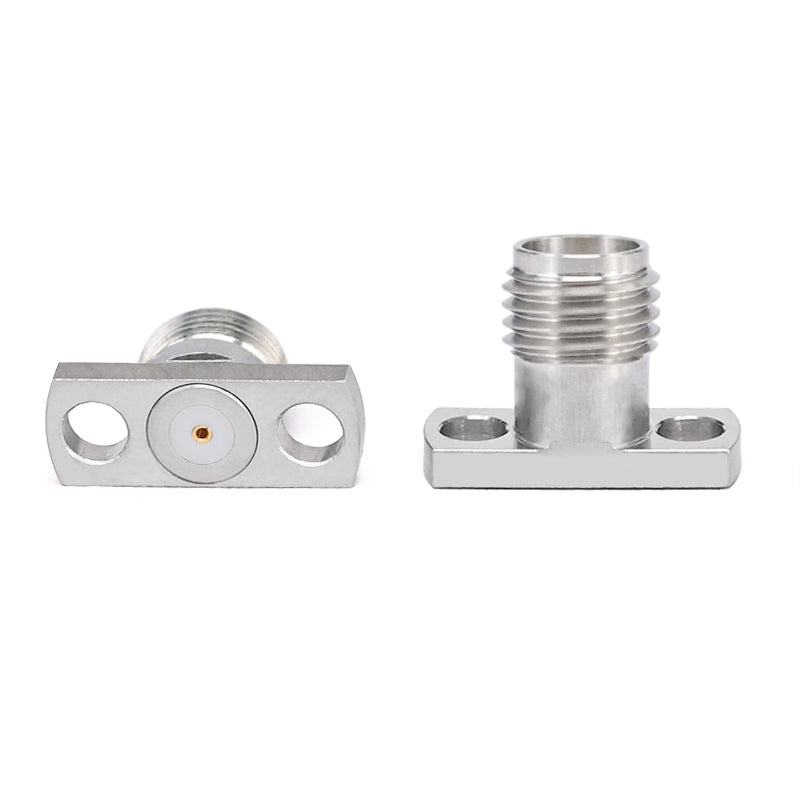

SMA Female Field Replaceable Connector 2-Hole Flange,8.6mm Hole Spacing, DC-26.5GHz

  • $7.32
    Unit price per
Shipping calculated at checkout.

These are a group of SMA female field replaceble connectors with 2-hole flange. The flange size is 12.7mmX4.8mm and the space of flange hole is 8.6mm. The acceptable pin diameters are 0.23mm, 0.30mm, 0.38mm, 0.46mm and 0.51mm. They are used with glass beads of corresponding size and available with both male and female connector types.

Part Number List:

SMA-KFD0723 Accepts Pin Diameter:0.23mm
SMA-KFD0730 Accepts Pin Diameter:0.30mm
SMA-KFD0738 Accepts Pin Diameter:0.38mm
SMA-KFD0746 Accepts Pin Diameter:0.46mm
SMA-KFD0751 Accepts Pin Diameter:0.51mm


Frequency DC-26.5GHz
Insertion Loss  ≤ 0.1 xSqt.(f_GHz) dB
VSWR 1.15
Body Material Stainless Steel
Mount Method 2-Hole Flange
Flange Size 12.7mmX4.8mm
Hole Spacing 8.6mm
Hole Siz 2.6mm
Operation Temp. -40~+85deg.
