N to N 4-Hole Flange Adaptor ｜ DC-18GHz

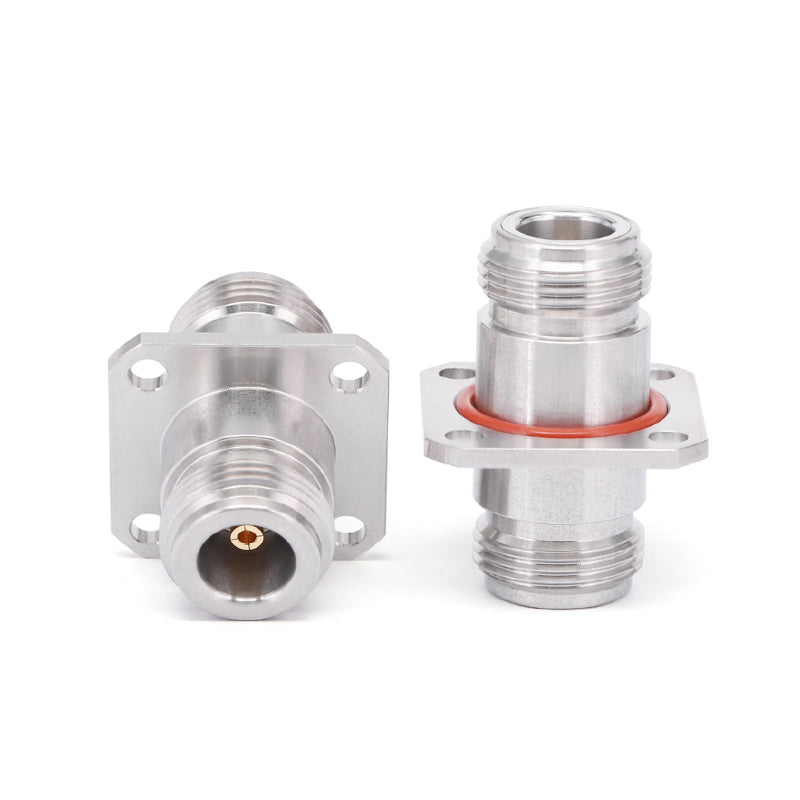

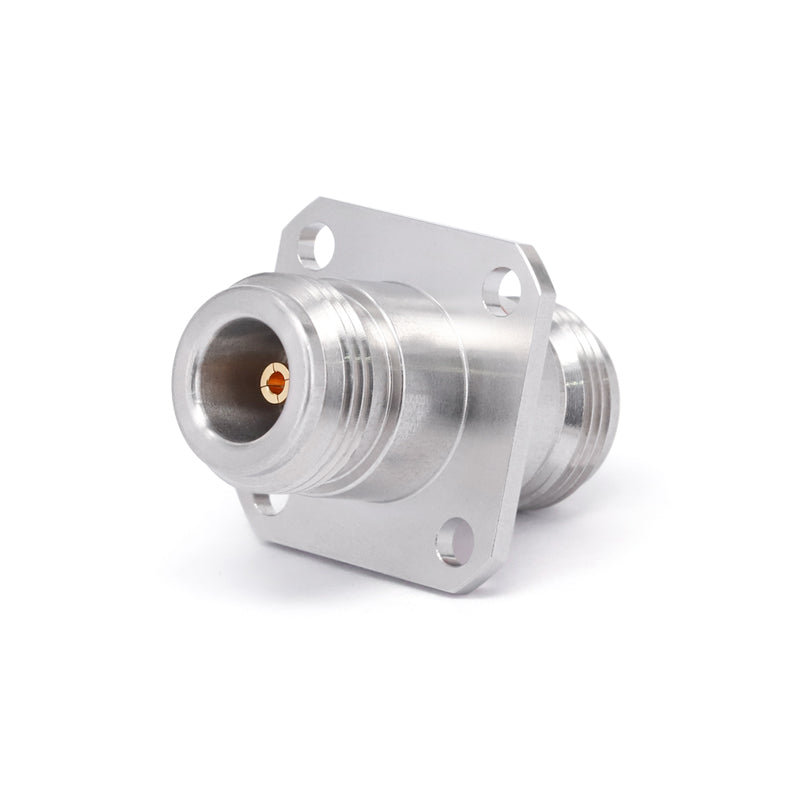

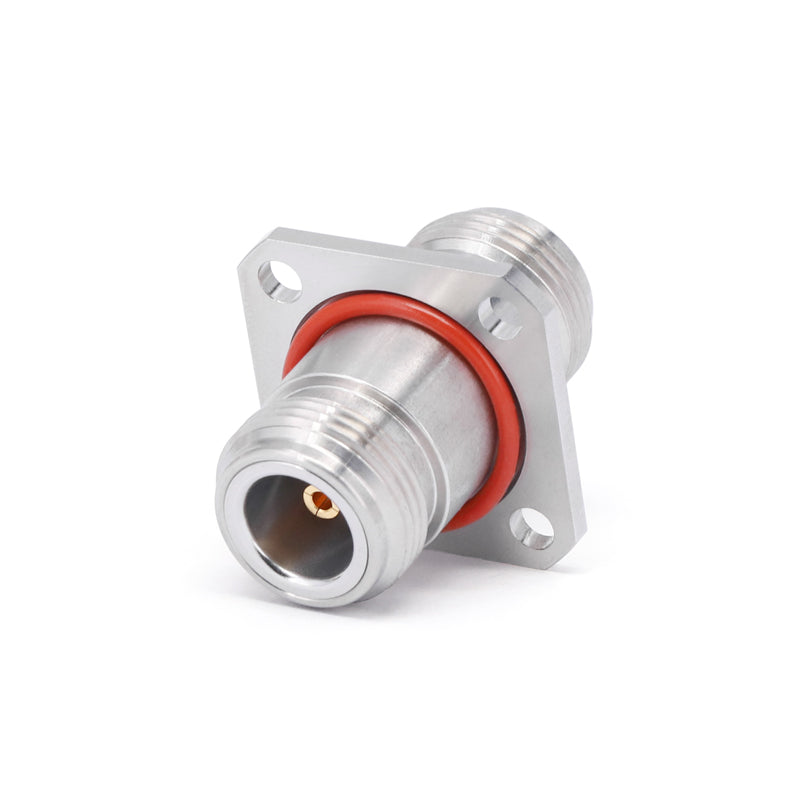

These are a group of N to N Adaptor with 4-hole flange. The flange size is 25.4mm x 25.4mm and the space of flange hole is 18.2mm x 18.2mm.
Part Number List:
| N-KFKS | N Female to N Female , 4-hole flange |
| N-JFKS | N Male to N Female , 4-hole flange |
Specifications:
| Frequency | DC-18GHz |
| Insertion Loss | ≤ 0.1 x Sqt.(f_GHz) dB |
| VSWR | 1.15 |
| Body Material | Stainless Steel |
| Mount Method | 4-Hole Flange |
| Flange Size | 25.4mm x 25.4mm |
| Hole Spacing | 18.2mm x 18.2mm |
| Hole Siz | 3.5mm |
| Operation Temp. | -55~+165deg. |
