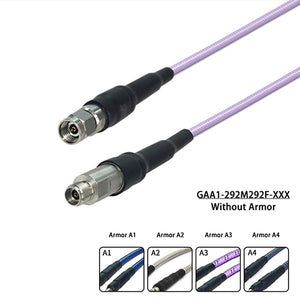

2.92mm Male to 2.92mm Female Using GT142A Ultra-low loss (2.2dB/m@40GHz) and Phase-Stable cable, DC-40GHz
GAA1 series products provided by Gwave are RF cable assemblies with ultra-low loss, with a loss of 2.2dB/m@40GHz. And We have one without armor cable assembly and 4 kinds of armor cable assemblies for customers to choose.
A1 armor features: very soft, waterproof and uv resistant, wear and shear resistant, distortion resistant and high tensile strength;
A2 armor features: high temperature resistance, prevent excessive bending, wear resistance to shear, cost-effective;
A3 armor features: very flexible, resistant to excessive bending, wear and shear resistance;
A4 armor features: waterproof, prevent excessive bending, wear and shear resistance, cost-effective.
Part Number List:
|GAA1-292M292F-XXXA1||With Polyurethane Jacket Over Braid Stainless Steel Spiral Armor|
|GAA1-292M292F-XXXA2||With Stainless Steel Interlocked Hose Armor|
|GAA1-292M292F-XXXA3||With Stainless Steel Wire Covered By Tin Plated Copper Wire And Nomex Braid|
|GAA1-292M292F-XXXA4||With Stainless Steel Interlocked Hose With Polyurethane Jacket|
1.All cable assemblies can be provided with phase-matched pairs or groups;
2.Customized lengths are available for all cable assemblies;
3. If you need phase matched or customized length cable assemblies, please leave a message when you place an online order or email to email@example.com for support.
