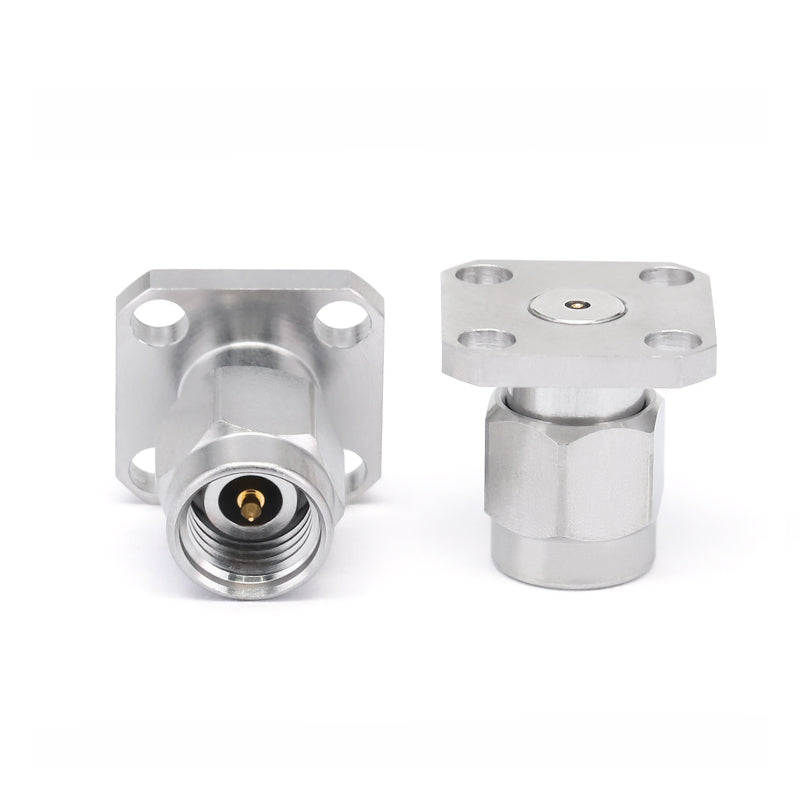

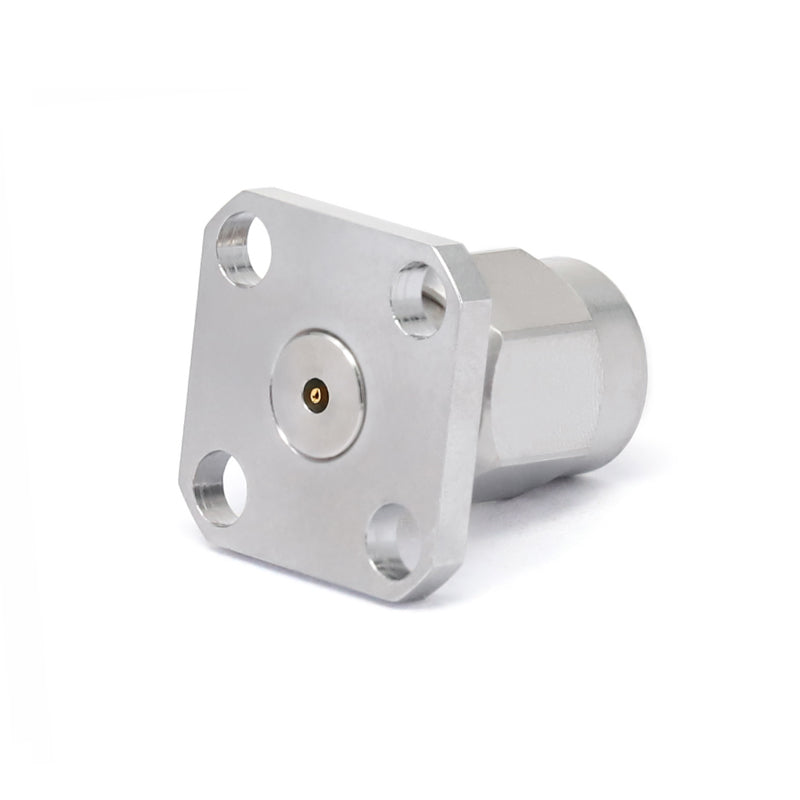

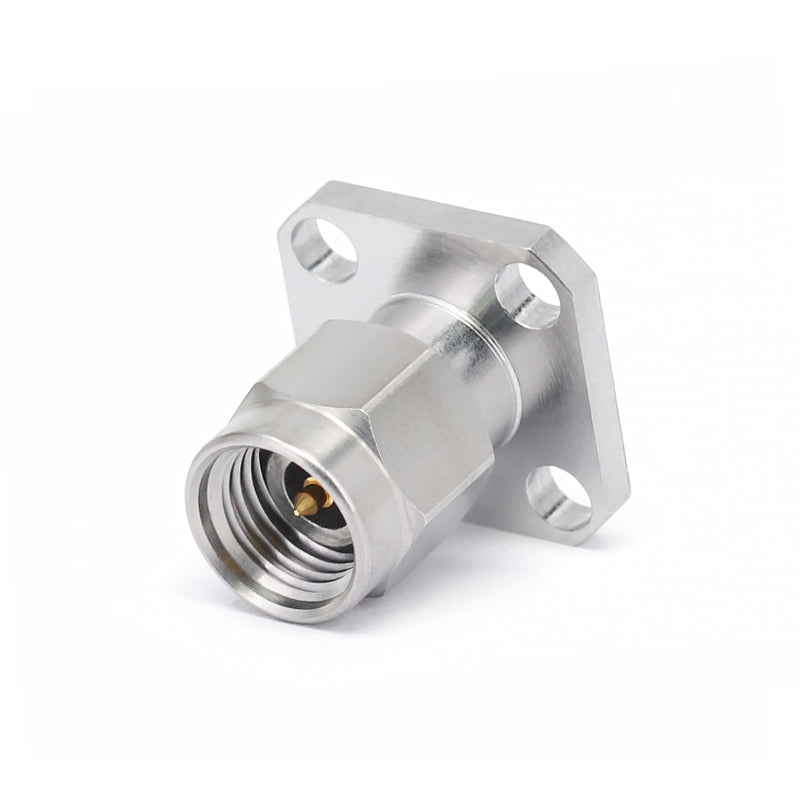

2.92mm Male Field Replaceable Connector with 4 Hole Flange, 8.6mm Hole Spacing,DC-40GHz

  • $17.96
    Unit price per
Shipping calculated at checkout.

These are a group of 2.92mm Male field replaceble connectors with 4-Hole flange. The flange size is 12.7 mmX12.7 mm and the space of flange hole is 8.6 mm . The acceptable pin diameters are 0.23mm, 0.30mm,0.38mm and 0.51mm. They are used with glass beads of corresponding size and available with both male and female connector types.

Part Number List:

2.92-JFD0123 Accepts Pin Diameter:0.23mm
2.92-JFD0130 Accepts Pin Diameter:0.30mm
2.92-JFD0138 Accepts Pin Diameter:0.38mm
2.92-JFD0151 Accepts Pin Diameter:0.51mm


Frequency DC-40GHz
Insertion Loss  ≤ 0.1 xSqt.(f_GHz) dB
VSWR 1.15
Body Material Stainless Steel
Mount Method 4-Hole Flange
Size 12.7 mmX 12.7 mm
Operation Temp. -55~+165deg.
