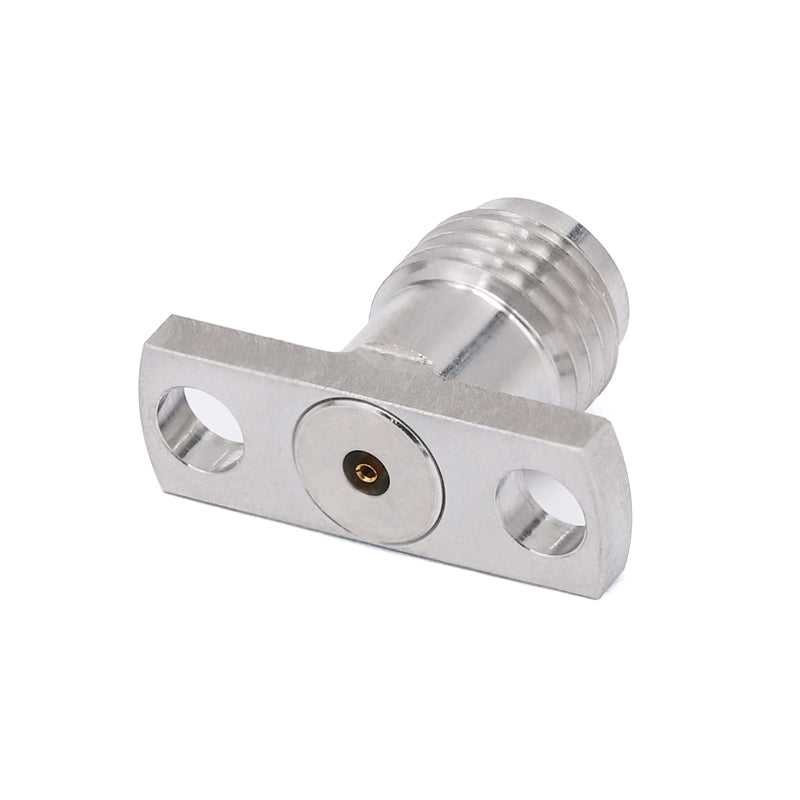

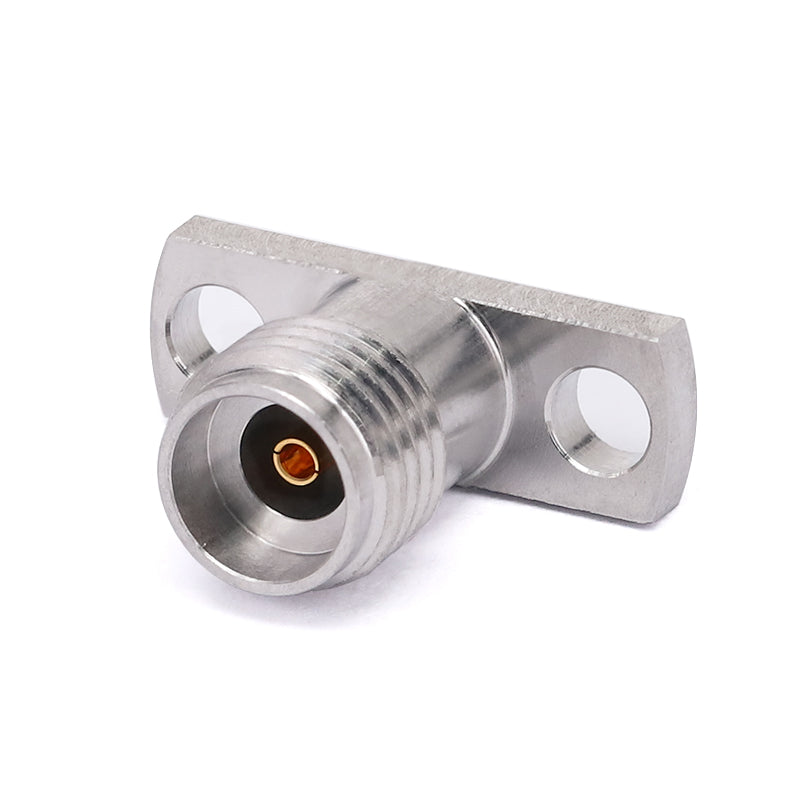

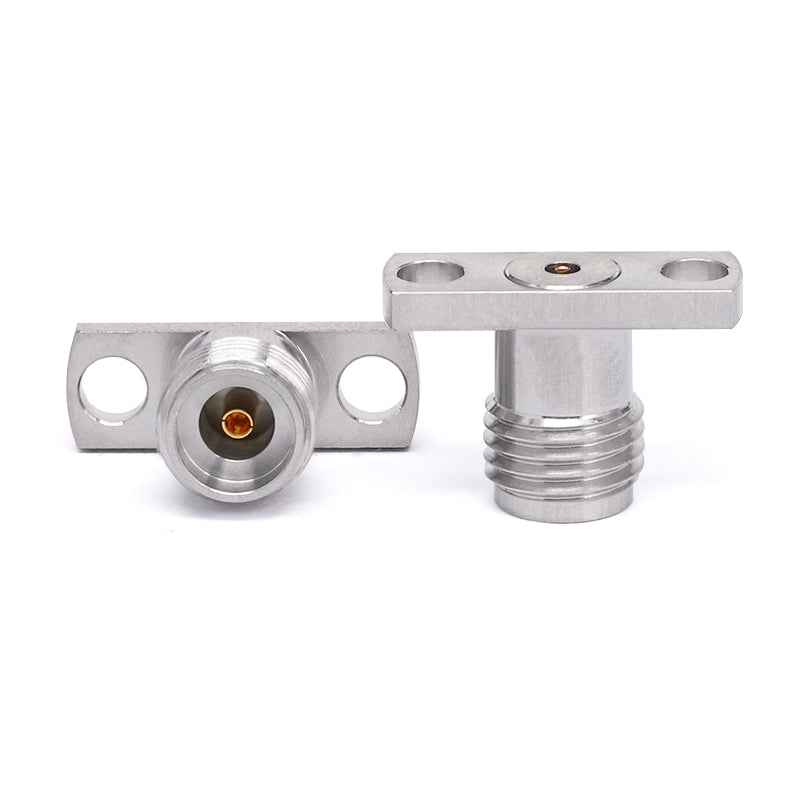

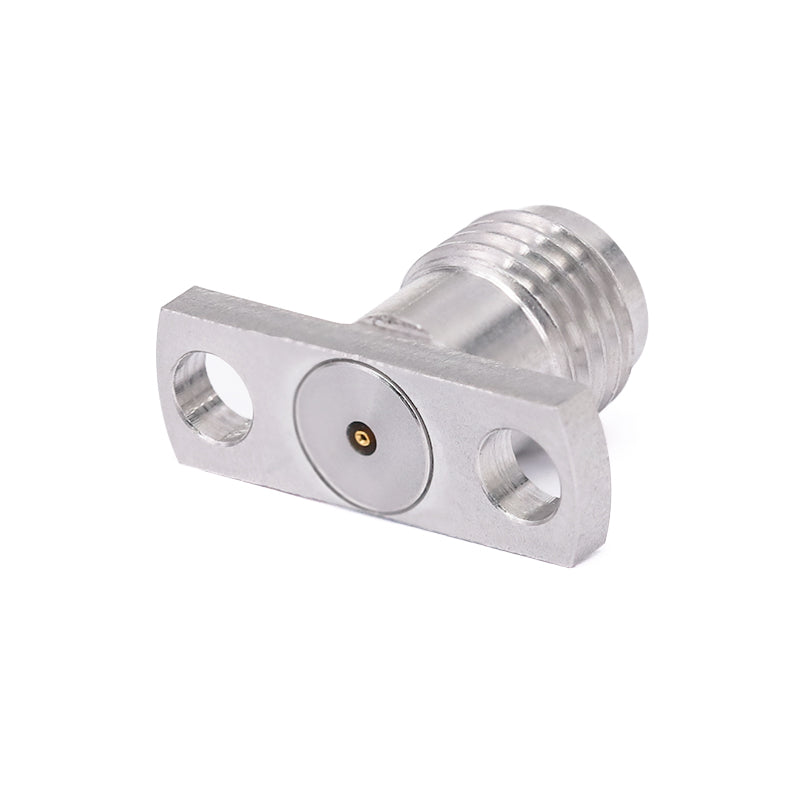

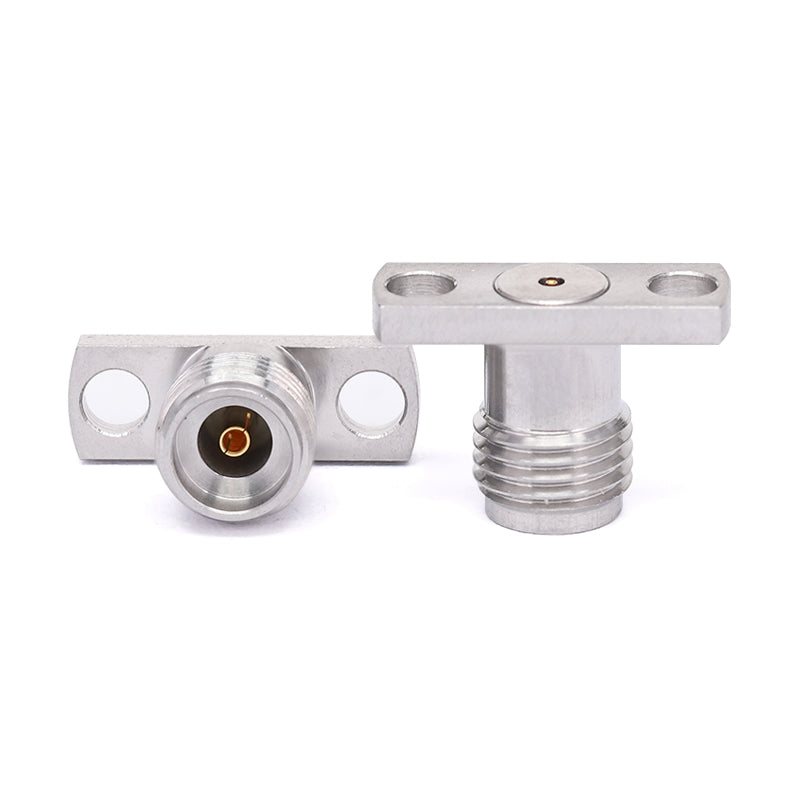

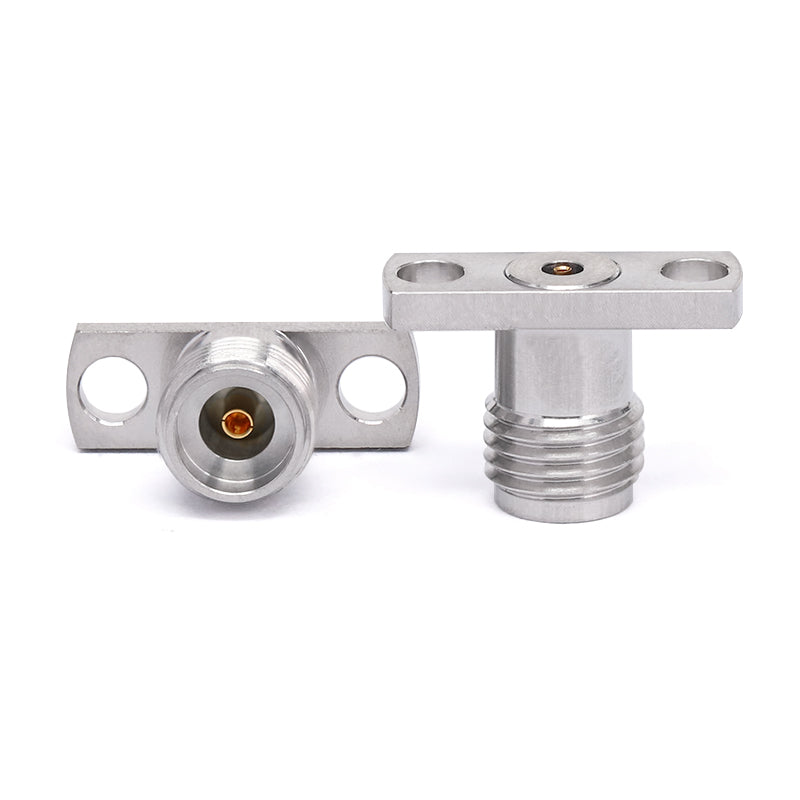

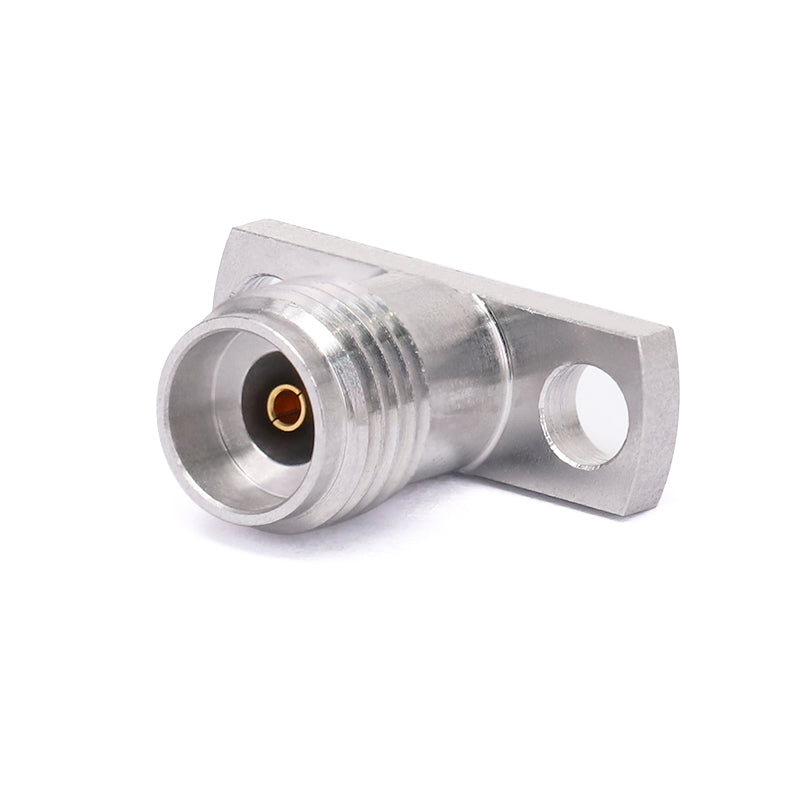

2.92mm Female Field Replaceable Connector with 2 Hole Flange, 10.2mm Hole Spacing,DC-40GHz

  • $16.09
    Unit price per
Shipping calculated at checkout.

These are a group of 2.92mm female field replaceble connectors with 2-Hole flange. The flange size is 14mmX 4.8mm and the space of flange hole is 10.2mm . The acceptable pin diameters are 0.23mm, 0.30mm ,0.38mm and 0.51mm. They are used with glass beads of corresponding size and available with both male and female connector types.

Part Number List:

Accepts Pin Diameter:0.23mm
2.92-KFD0530 Accepts Pin Diameter:0.30mm
2.92-KFD0538 Accepts Pin Diameter:0.38mm
2.92-KFD0551 Accepts Pin Diameter:0.51mm


Frequency DC-40GHz
Insertion Loss  ≤ 0.1 xSqt.(f_GHz) dB
VSWR 1.15
Body Material Stainless Steel
Mount Method 2-Hole Flange
Size 14mmX 4.8mm
Operation Temp. -55~+165deg.
