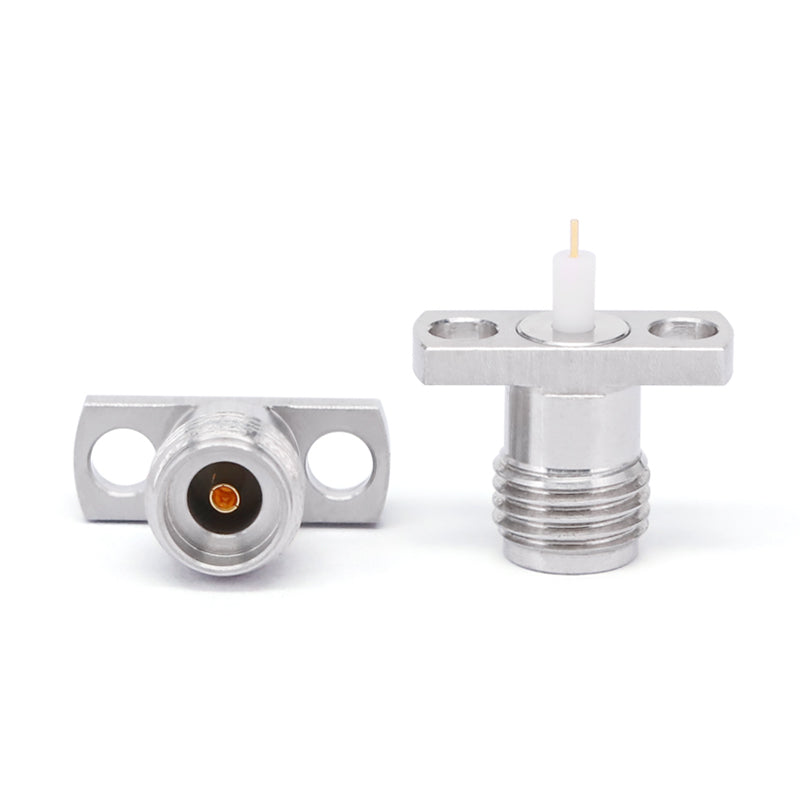

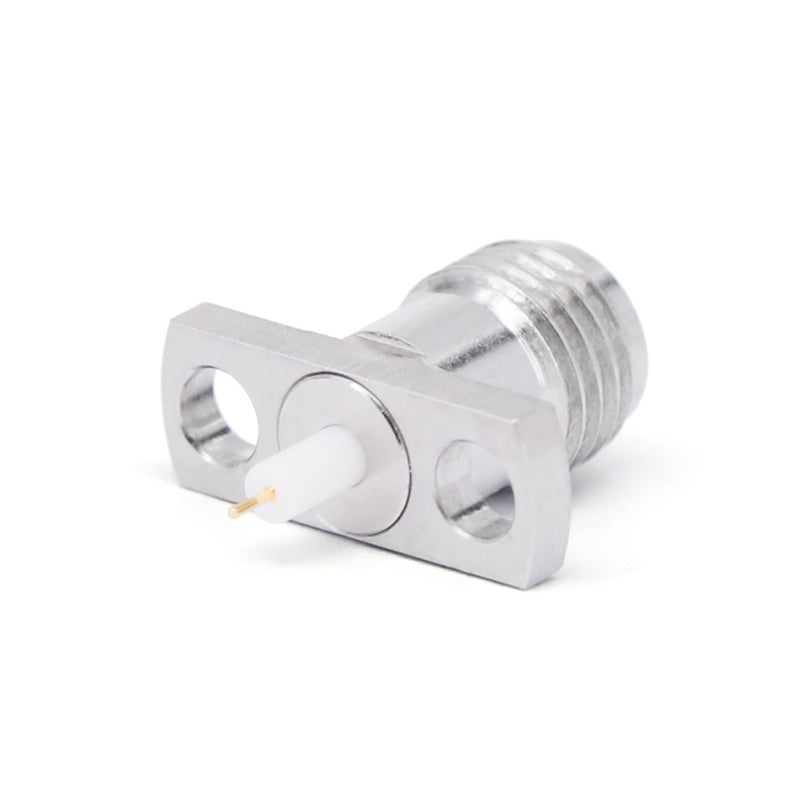

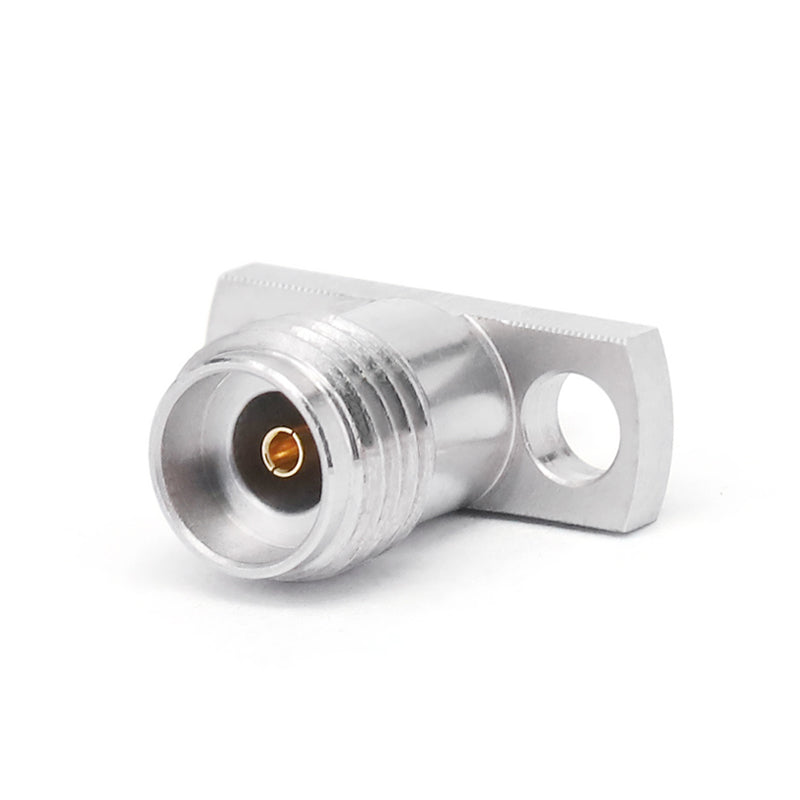

2.92mm Female Connector with 2-hole Flange, Hole Spacing 8.6 mm, Metal Through-plate，DC-40GHz
Shipping calculated at checkout.
Gwave provide a group of 2.92mm Female Flange Mount and Metal through-plate connectors, using frequency up to 40GHz. This series of connectors have 2-Hole flange, flange size is 12.7 mmX 4.8 mm and the space of flange hole is 8.6 mm . They have different Through-plate matel diameter and length, different tail Pin diameter and Length. Please refer to the picture, drawing and the corresponding size to select the product you need.
Part Number List:
|Insertion Loss||≤ 0.05 xSqt.(f_GHz) dB|
|Body Material||Stainless Steel|
|Mount Method||2-Hole Flange|
|Size||12.7 mmX 4.8 mm|
