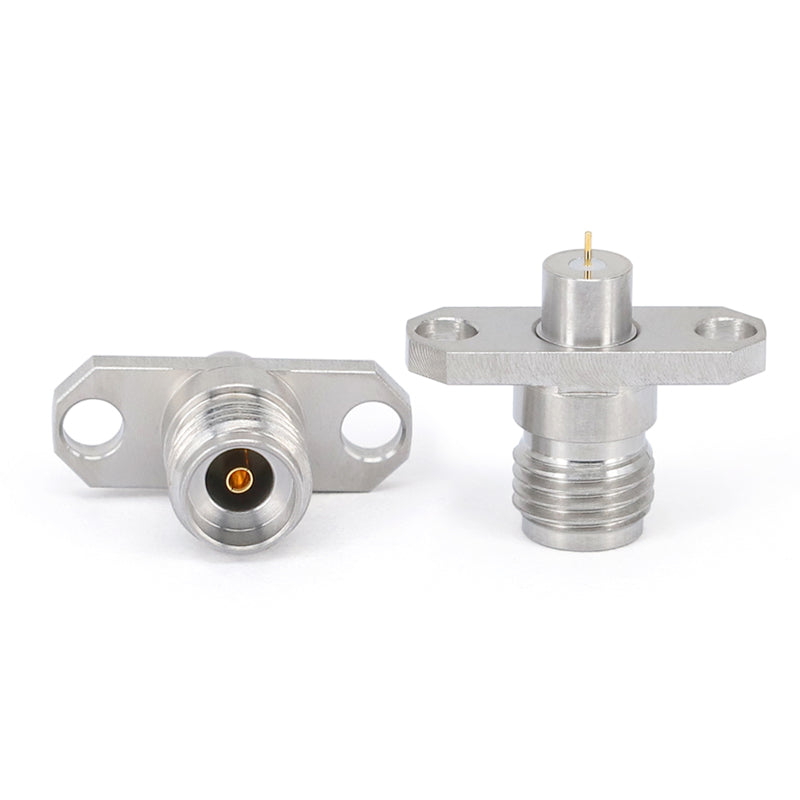

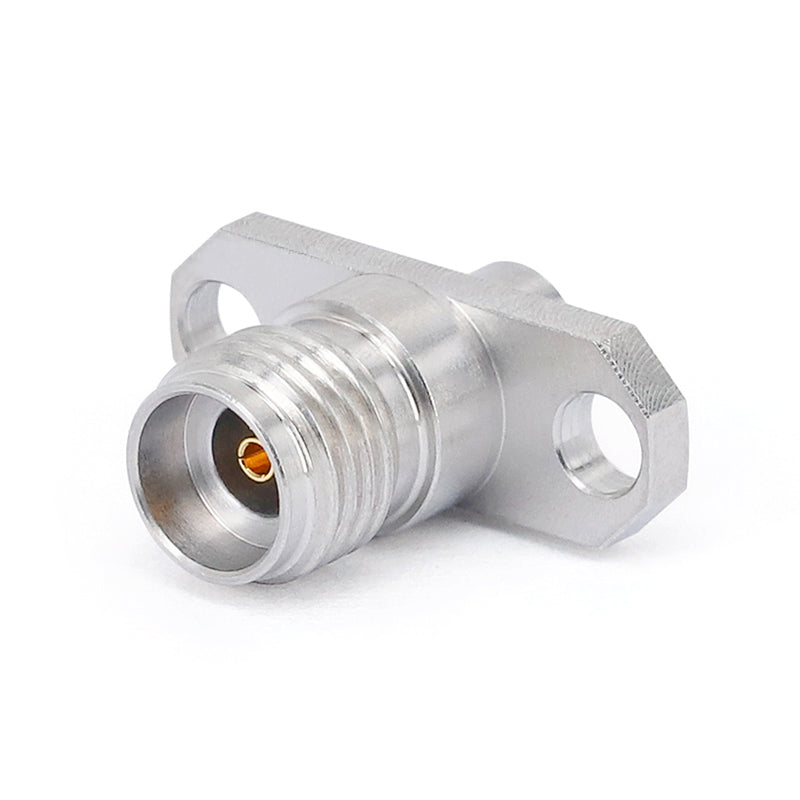

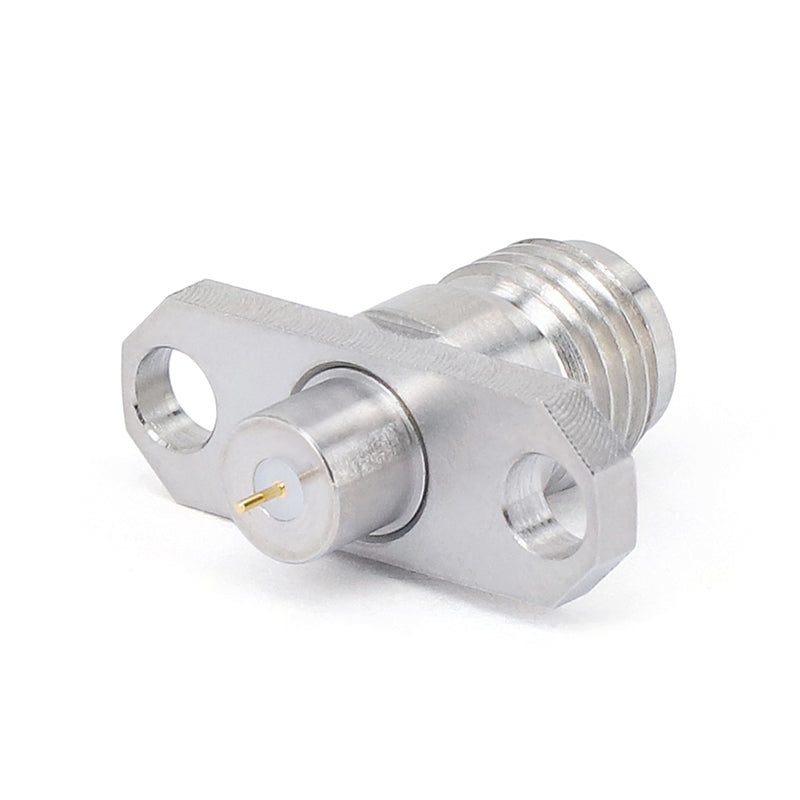

2.92mm Female Connector with 2-hole Flange, Hole Spacing 12.2mm, Metal Through-plate，DC-40GHz

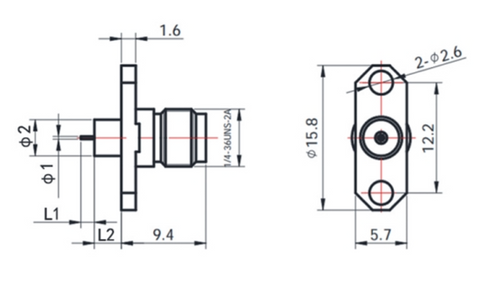

Gwave provide a group of 2.92mm Female Flange Mount and Metal through-plate connectors, using frequency up to 40GHz. This series of connectors have 2-Hole flange, flange size is 15.8mmX 5.7mm and the space of flange hole is 12.2mm . They have different Through-plate matel diameter and length, different tail Pin diameter and Length. Please refer to the picture, drawing and the corresponding size to select the product you need.

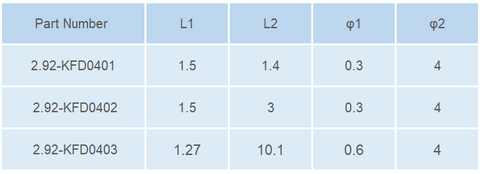

Part Number List:
| 2.92-KFD0401 | Φ1=0.3mm,Φ2=4mm, L1=1.5mm,L2=1.4mm |
| 2.92-KFD0402 | Φ1=0.3mm,Φ2=4mm, L1=1.5mm,L2=3mm |
| 2.92-KFD0403 | Φ1=0.6mm,Φ2=4mm, L1=1.27mm,L2=10.1mm |
Specifications:
| Frequency | DC-40GHz |
| Insertion Loss | ≤ 0.05 xSqt.(f_GHz) dB |
| VSWR | 1.15 |
| Body Material | Stainless Steel |
| Mount Method | 2-Hole Flange |
| Size | 15.8mmX 5.7mm |
| Operation Temp. | -55~+165deg. |
Reliable 2 Hole Flange Connector for Superior Signal Integrity
Our cutting-edge RF and microwave communication solutions are our specialty at Gwave Technology Inc. Our quality and ingenuity are shown in our 2 hole flange connector, a top product.
Our 2 hole flange connector is accurate and reliable, making it excellent for telecommunications, aerospace, and defence applications. Signal integrity in high-frequency situations requires this connector's strong and robust connection.
Key features
The durability and robustness
Our 2 hole flange connector is made of durable materials for long-term performance. Maintenance expenses and downtime are reduced by its durable design.
Easy Installation: Its user-friendly design makes the 2 hole flange connector easy to install. Its tiny size makes it compatible with many systems and setups, allowing for versatility.
Superior Signal Integrity: Signal quality is essential in high-frequency applications. Our 2 hole flange connector reduces signal loss and interference for best performance and transmission.
Versatility: This connector supports multiple cable types and sizes for project versatility. For new installations or system upgrades, our 2 hole flange connector is ideal.
Applications
Our 2 hole flange connector is ideal for:
-
Telecommunications Infrastructure
-
Satellite Communications
-
Radar Systems
-
Wireless Networks
We Also Recommend
FAQs
Where can I buy 2-hole flange connectors?
This connector is also available online at a variety of other online electronics retailers. Specialized online electronics retailers include GWAVE Tech. Quality connectors are produced by these companies and are compatible with a wide number of RF applications, from military to commercial users.
What is a 2 Hole Flange Connector?
It is a 2 2-hole flange Connector, an RF connector that has two mounting holes. This type of connector is ideal for a requirement when a compact stable connection is required for dependable signal transmission at high frequencies.
What materials used in the 2 Hole Flange Connector?
2 Hole Flange Connectors are made typically of brass, stainless steel, and copper. The material chosen provides excellent conductivity, corrosion resistance, and mechanical strength, making these types suitable for most RF and high-frequency applications.
How do I properly secure a 2 Hole Flange Connector?
Mount two 2 Hole Flange Connector to the mounting holes on your device or panel. Then tighten up the screws for a firm grasp, avoiding movement and loose contacts that would cause signal degradation or interference.
How To Install a 2 Hole Flange Connector?
For a 2 Hole Flange Connector, you should first align the connector with the mounting holes. You fasten it in place by the usage of screws or bolts, making sure that you get a tight and stable connection. Proper installation is the way to go by keeping signal integrity at its best for high-frequency systems.
