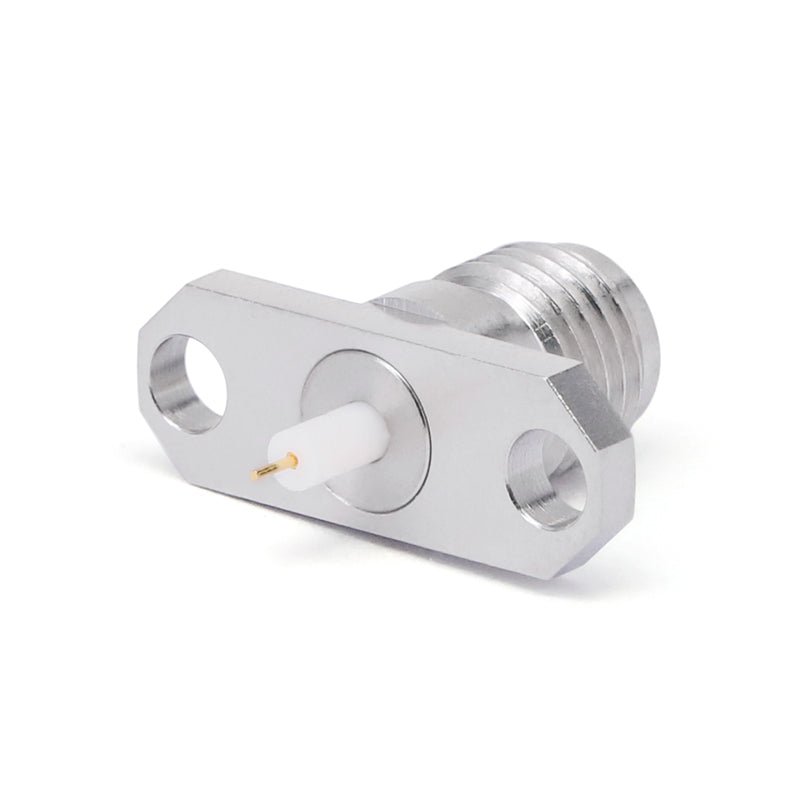

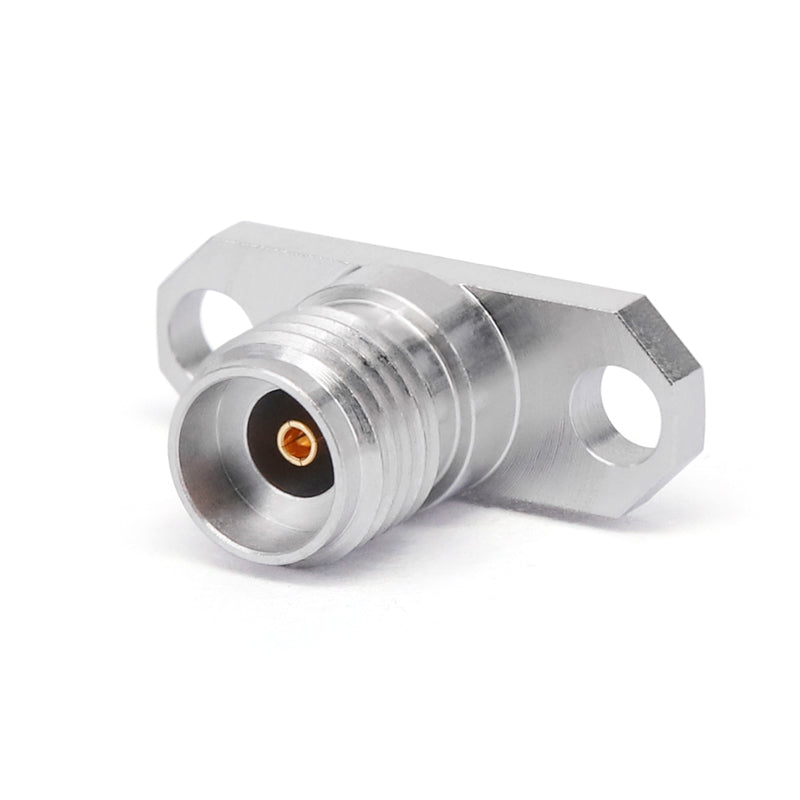

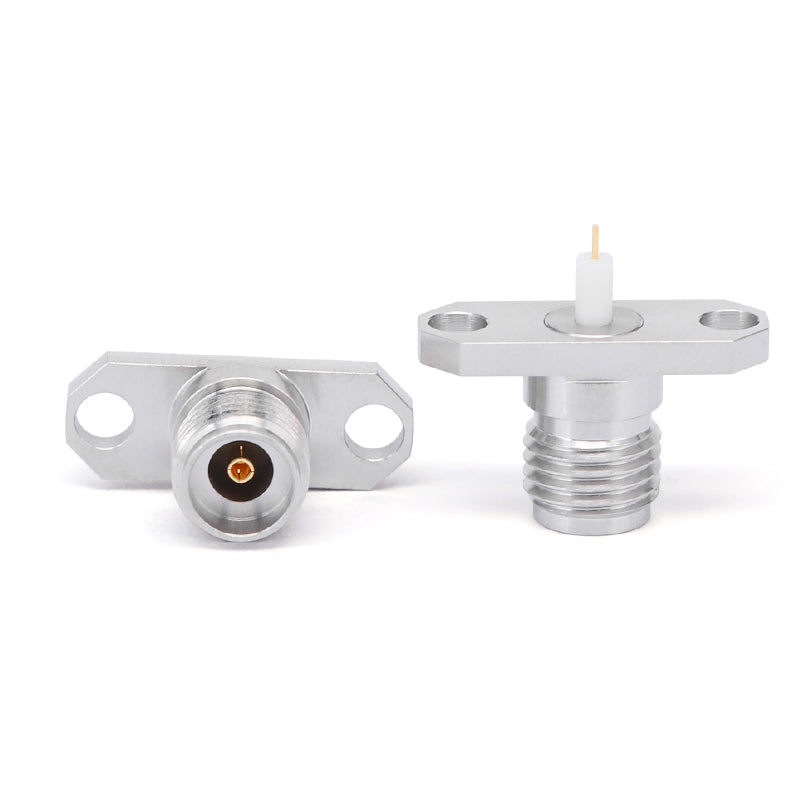

2.92mm Female Connector with 2-hole Flange, Hole Spacing 12.2 mm, Metal Through-plate,DC-40GHz

  • $17.78
    Unit price per
Shipping calculated at checkout.

Gwave provide a group of 2.92mm Female Flange Mount and Metal through-plate connectors, using frequency up to 40GHz. This series of connectors have 2-Hole flange, flange size is 15.8 mmX 5.7mm and the space of flange hole is 12.2 mm .  They have different Through-plate matel diameter and length,  different tail Pin diameter and Length. Please refer to the picture, drawing and the corresponding size to select the product you need.


Part Number List:

2.92-KFD0404 Φ1=0.3mm,Φ2=1.67mm, L1=1.5mm,L2=1.4mm
2.92-KFD0405 Φ1=0.3mm,Φ2=1.67mm, L1=1.5mm,L2=3mm


Frequency DC-40GHz
Insertion Loss  ≤ 0.05 xSqt.(f_GHz) dB
VSWR 1.15
Body Material Stainless Steel
Mount Method 2-Hole Flange
Size 15.8 mmX 5.7mm
Operation Temp. -55~+165deg.
