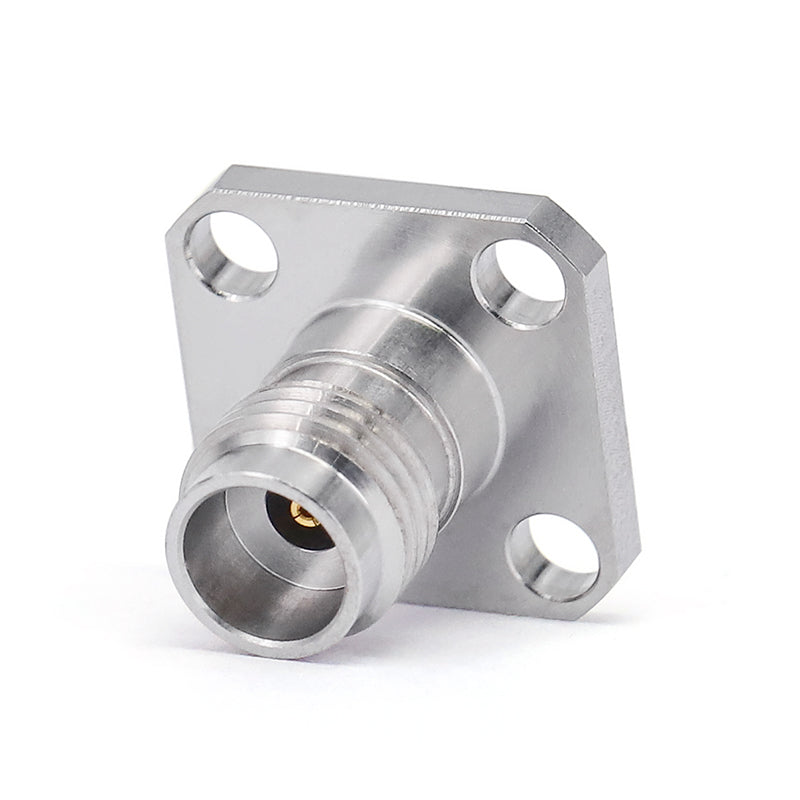

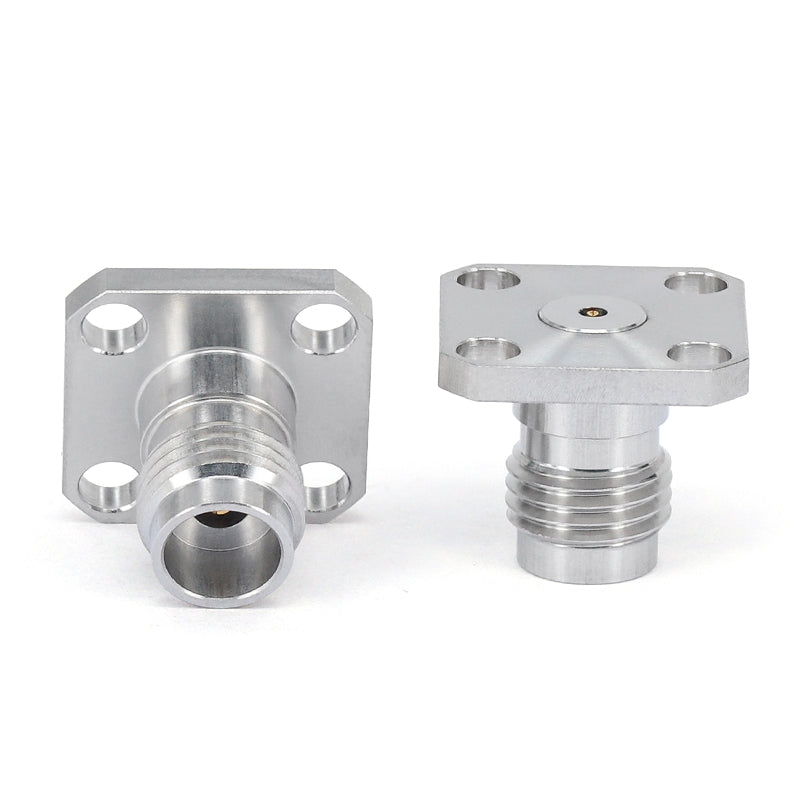

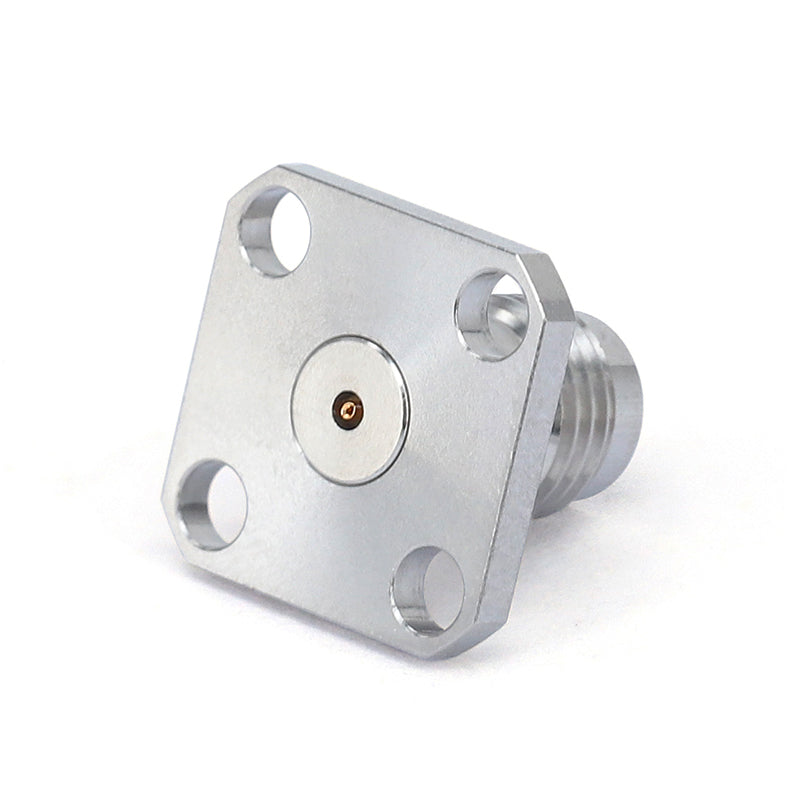

2.4mm Female Field Replaceable Connector with 4 Hole Flange, 8.6mm Hole Spacing,DC-50GHz

  • $32.63
    Unit price per
Shipping calculated at checkout.

These are a group of 2.4mm female field replaceble connectors with 4-Hole flange. The flange size is 12.7mmX12.7mm and the space of flange hole is 8.6mm . The acceptable pin diameters are 0.23mm, 0.30mm and 0.51mm. They are used with glass beads of corresponding size and available with both male and female connector types.

Part Number List:

Accepts Pin Diameter:0.23mm
2.4-KFD0130 Accepts Pin Diameter:0.30mm
2.4-KFD0151 Accepts Pin Diameter:0.51mm


Frequency DC-50GHz
Insertion Loss  ≤ 0.05 xSqt.(f_GHz) dB
VSWR 1.15
Body Material Stainless Steel
Mount Method 4-Hole Flange
Size 12.7mmX12.7mm
Operation Temp. -55~+165deg.
