2.4mm Female Connector with 4-hole Flange, Hole Spacing 8.6mm, Metal Through-plate ，DC-50GHz
Gwave provide a group of 2.4mm Female Flange Mount and Metal through-plate connectors, using frequency up to 50GHz. This series of connectors have 4-Hole flange, flange size is 12.7mmX 12.7mm and the space of flange hole is 8.6mm . They have different Through-plate matel diameter and length, different tail Pin diameter and Length. Please refer to the picture, drawing and the corresponding size to select the product you need.

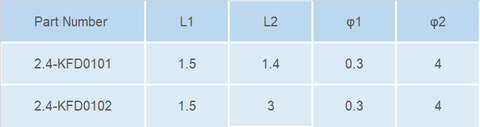

Part Number List:
|Insertion Loss||≤ 0.05 xSqt.(f_GHz) dB|
|Body Material||Stainless Steel|
|Mount Method||4-Hole Flange|
