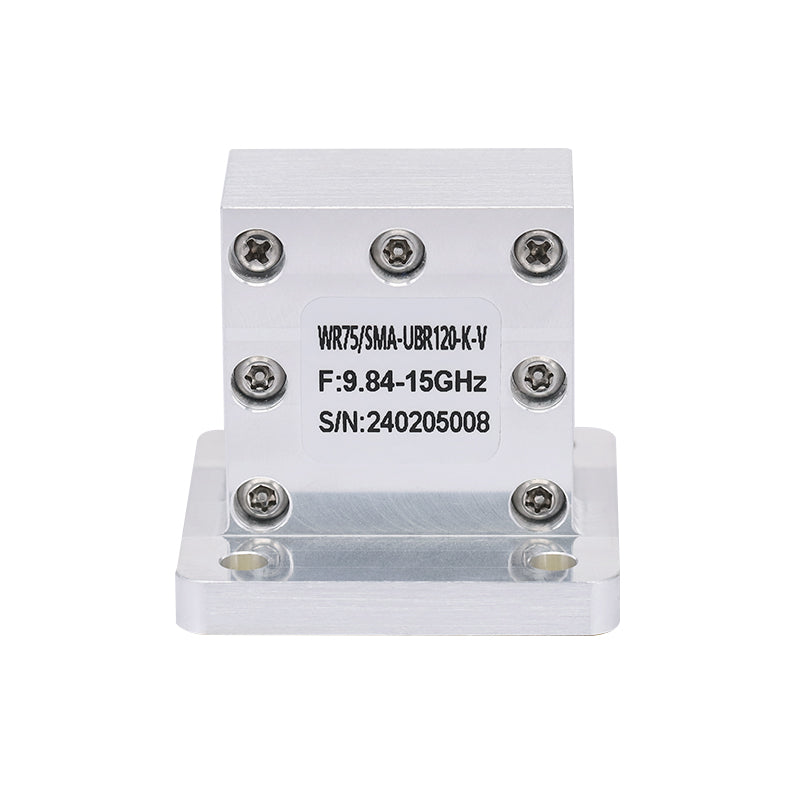

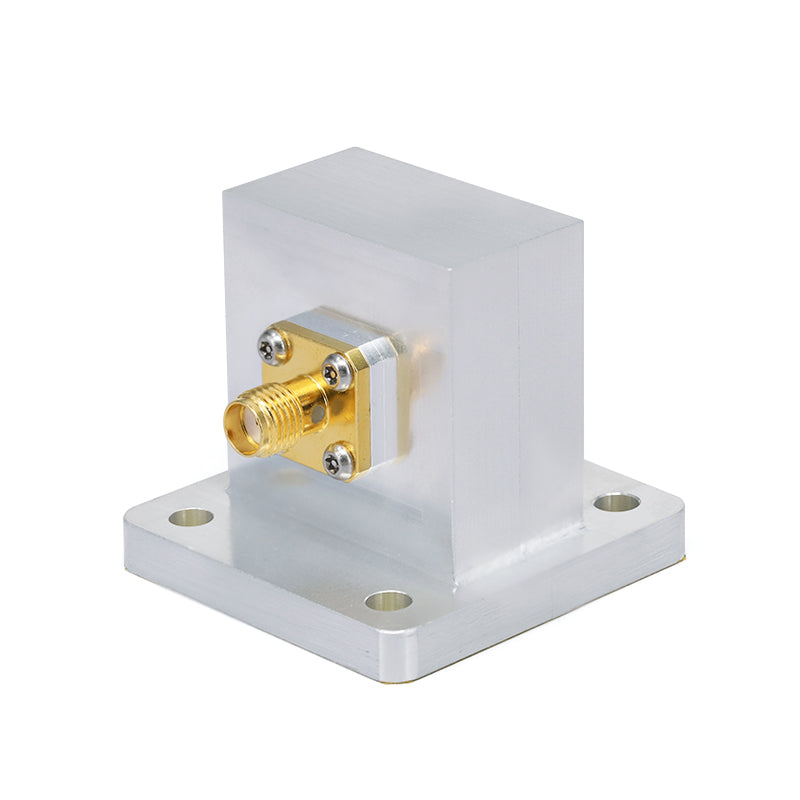

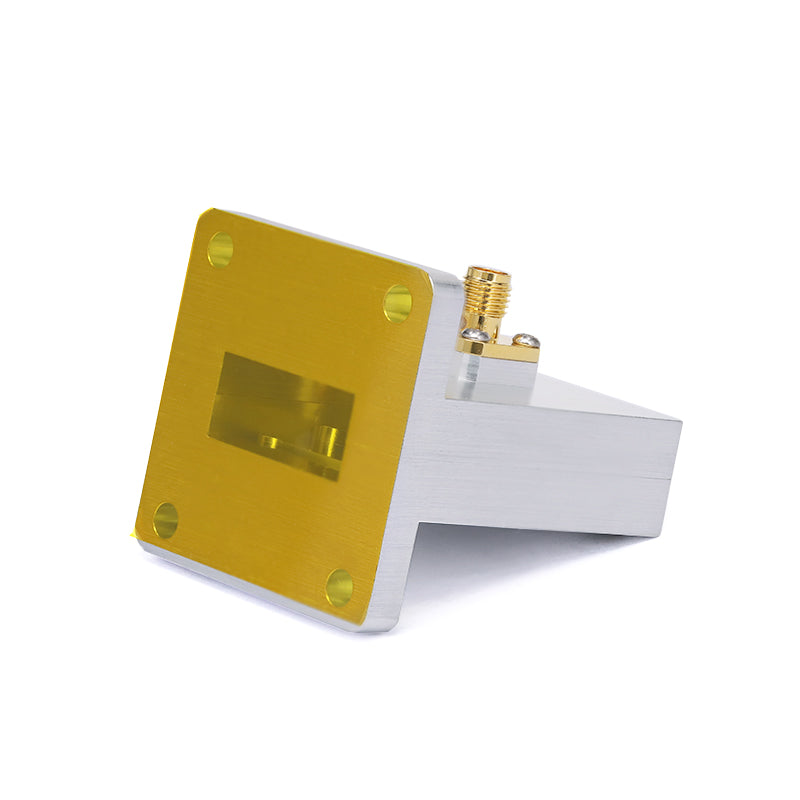

WR-75 to SMA Female Right Angle Waveguide to Coax Adapters with UBR120 Flange, 9.84 - 15GHz
WR-75 to SMA Female Right Angle Waveguide to Coax Adapters with UBR120 Flange, 9.84 - 15GHz
WR-75 to SMA Female Right Angle Waveguide to Coax Adapters with UBR120 Flange, 9.84 - 15GHz

WR-75 to SMA Female Right Angle Waveguide to Coax Adapters with UBR120 Flange, 9.84 - 15GHz

Shipping calculated at checkout.

Part Number List:

Part Number Product Description                      View Datasheet
WR75/SMA-UBR120-K-V

WR75 to SMA Female Waveguide to Coax Adpters，Right Angle


Specifications:

 Frequency 9.84GHz-15GHz
VSWR 1.25 Max.
Insertion Loss 0.25 dB Max.
Connector Type SMA Female
Waveguide Type WR75
Flange Type UBR120
Operation Temperature -30~+70deg.
