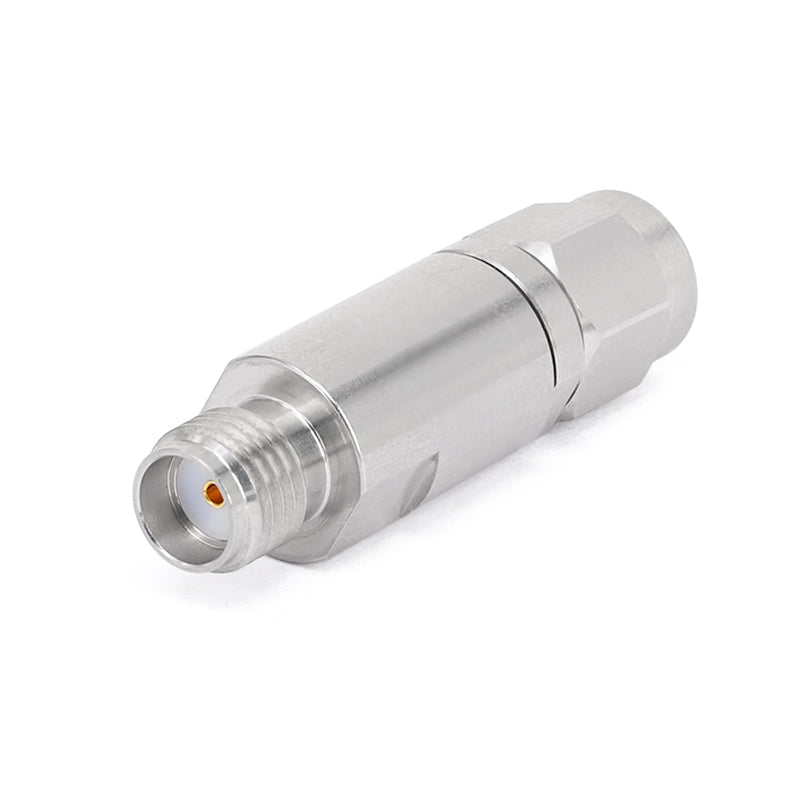

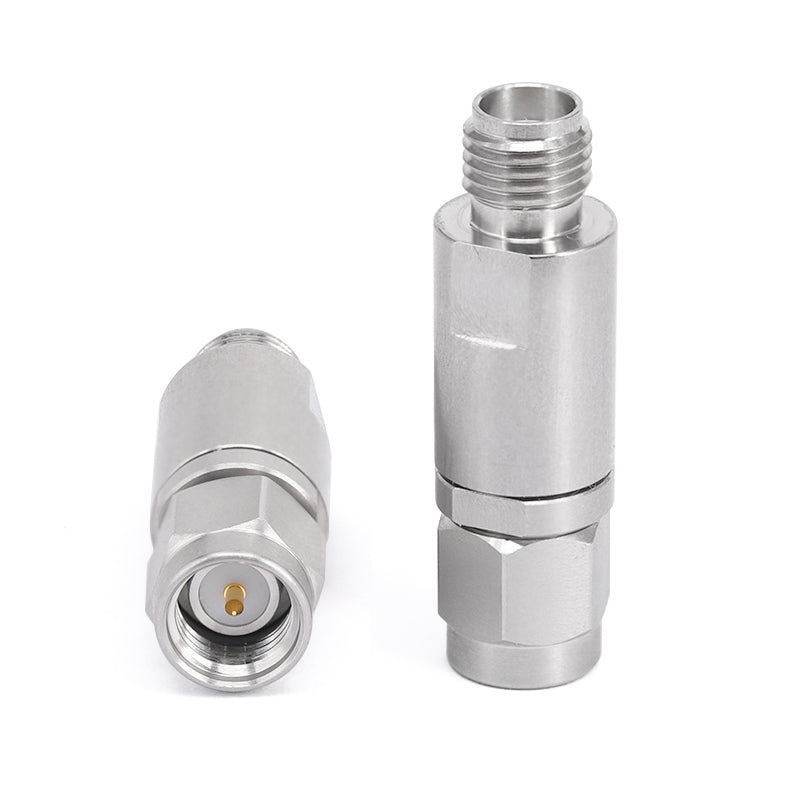

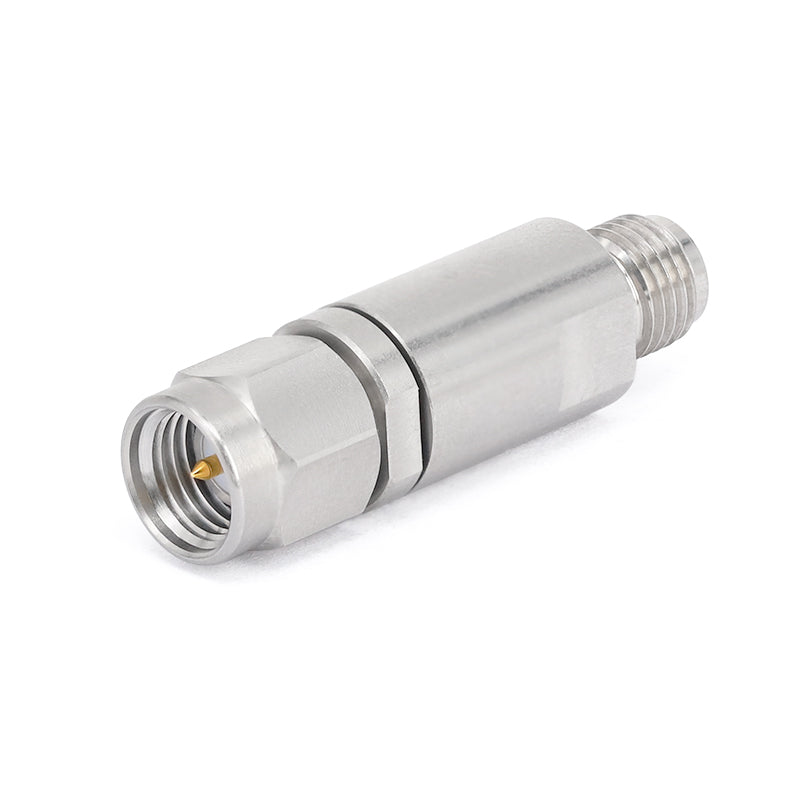

DC Block For SMA Connectors ｜ DC-30M-27GHz ｜ 50V
Part Number List:
| GDCB-27G-SMA-JK | SMA Male to SMA Female |
Specifications:
| Frequency | DC-30M-27GHz |
| Insertion Loss | ≤ 0.8 xSqt.(f_GHz) dB |
| VSWR | ≤1.25 |
| Body Material | Stainless Steel |
| DC Maximum Voltage[V]: | 50V |
| Impedance [Ohms] | 50Ω |
| Operation Temp. | -55~+165deg. |
