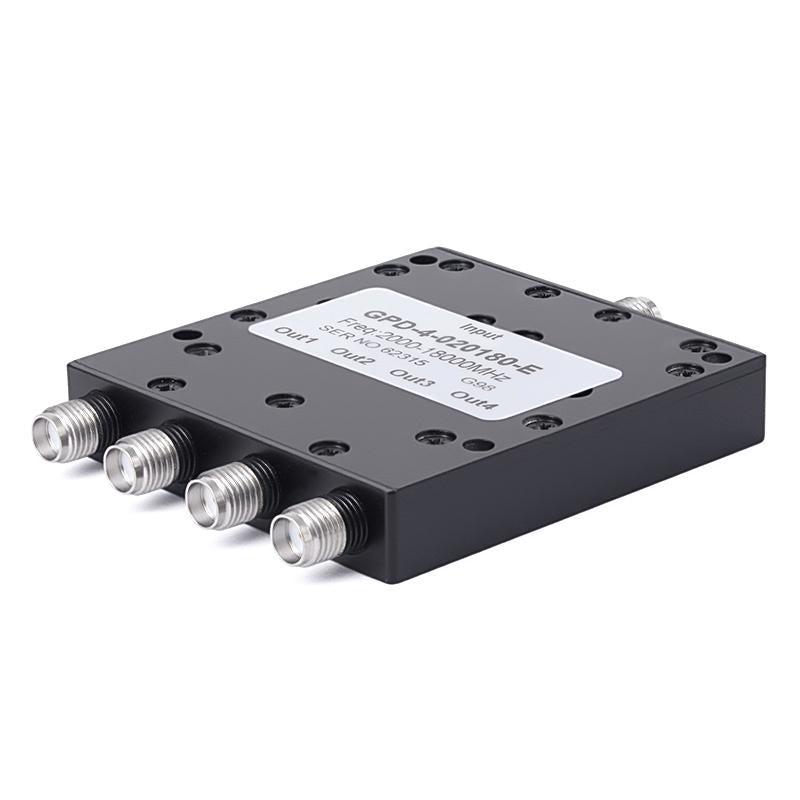

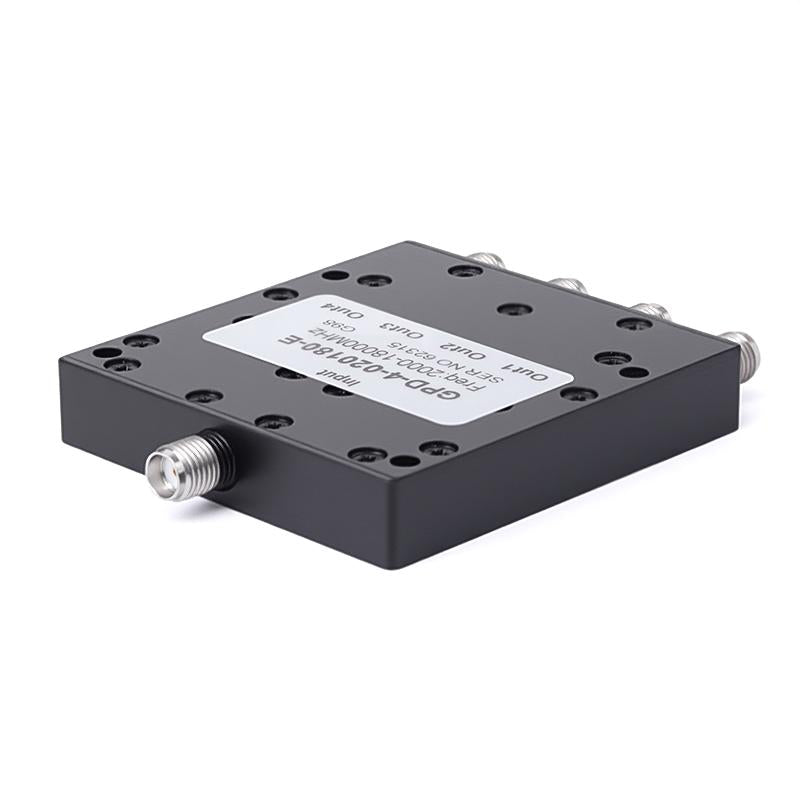

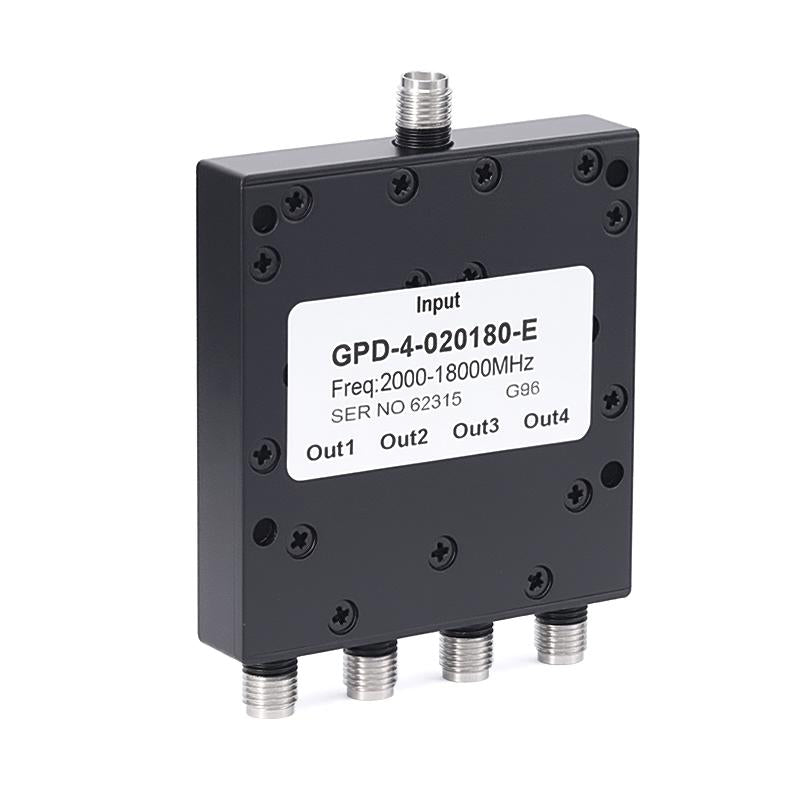

4-Way SMA Power Divider From 2 GHz to 18 GHz Rated at 20 Watts
4-Way SMA Power Divider From 2 GHz to 18 GHz Rated at 20 Watts
4-Way SMA Power Divider From 2 GHz to 18 GHz Rated at 20 Watts

4-Way SMA Power Divider From 2 GHz to 18 GHz Rated at 20 Watts

SKU: GPD-4-020180-E

Shipping calculated at checkout.

Part Number List:

Part Number Product Description                      View Datasheet
GPD-4-020180-E

4-Way Power Divider, 2-18GHz


Drawing:



Specifications:

Connector In       SMA Female
Connector Out  SMA Female
Insertion Loss ≤2 dB  *
Input Power Handing (CW) Max. 20W
Input VSWR Max. 1.5
Output VSWR Max. 1.4
Frequency Range 2-18GHz
Amplitude Balance  ±0.4dB
Phase Balance ±6°
Isolation Min. 17dB
Weight 107.8g
Housing Material Aluminum
Colour Black

* Notes：Insert loss does not include theoretical power distribution insert loss[6dB].

Test Report:



GPD-4-020180-E is a 4-Way SMA Power Divider From 2 GHz to 18 GHz Rated at 20 Watts coaxial power divider that covers the frequency range from 2-18GHz. This power divider has a Aluminum housing material and ensures an excellent microwave performance with low insertion loss and VSWR of .This power divider is precisely manufactured to RF industries like military & space, RF communication, test & measurement and industrial applications..
