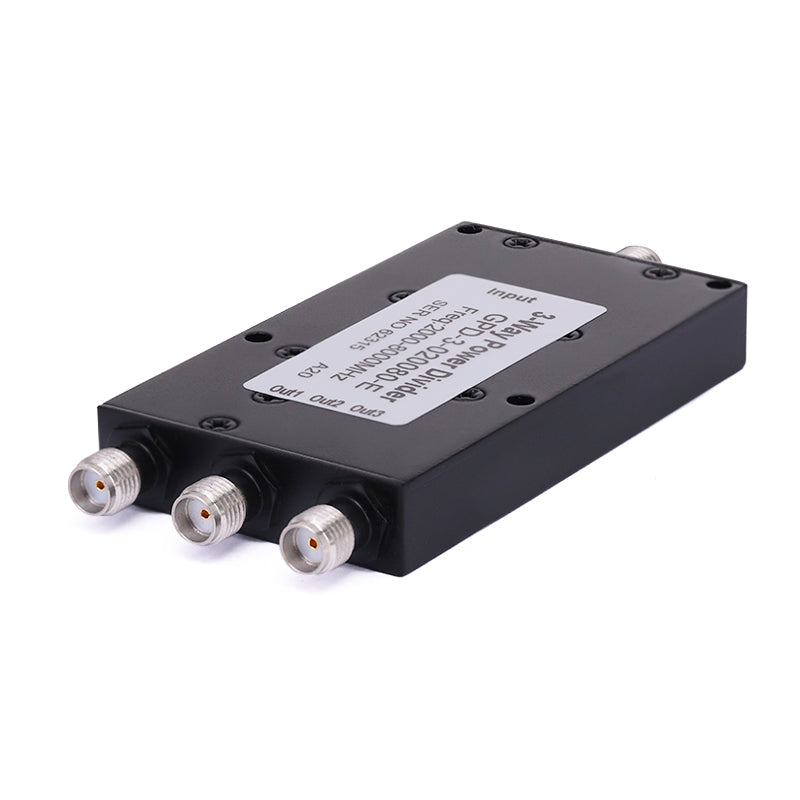

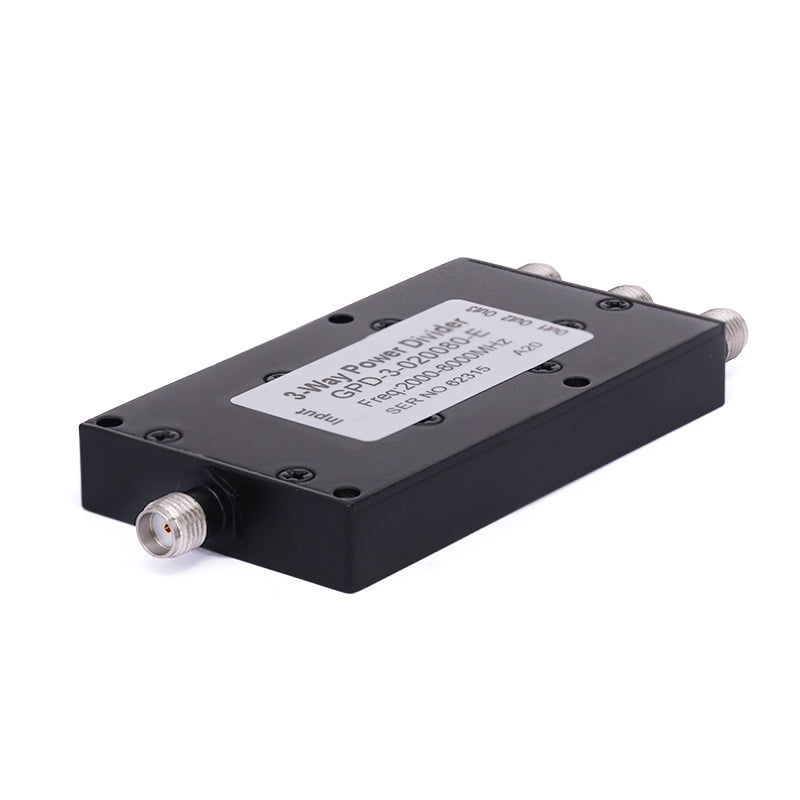

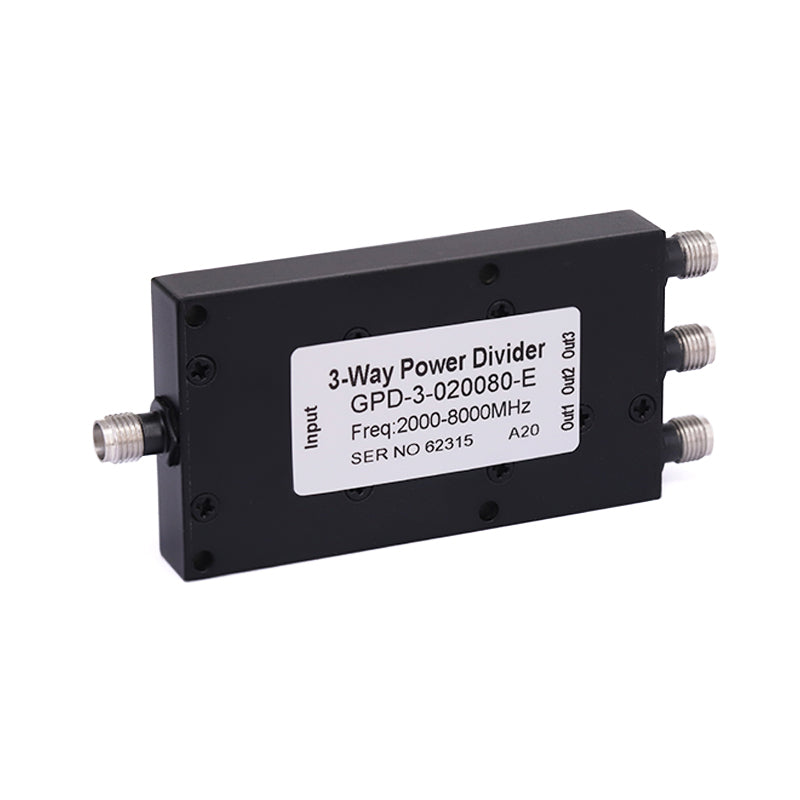

3-Way SMA Power Divider From 2 GHz to 8 GHz Rated at 20 Watts
3-Way SMA Power Divider From 2 GHz to 8 GHz Rated at 20 Watts
3-Way SMA Power Divider From 2 GHz to 8 GHz Rated at 20 Watts

3-Way SMA Power Divider From 2 GHz to 8 GHz Rated at 20 Watts

SKU: GPD-3-020080-E

  • Save $0
Shipping calculated at checkout.

Part Number List:

Part Number Product Description                      View Datasheet
GPD-3-020080-E

3-Way Power Divider, 2-8GHz


Drawing:



Specifications:

Connector In       SMA Female
Connector Out  SMA Female
Insertion Loss ≤1 dB  *
Input Power Handing (CW) Max. 20W
Input VSWR Max. 1.3
Output VSWR Max. 1.25
Frequency Range 2-8GHz
Amplitude Balance  ±0.5dB
Phase Balance ±5°
Isolation Min. 18dB
Weight 60.95g
Housing Material Aluminum
Colour Black

* Notes：Insert loss does not include theoretical power distribution insert loss[4.7dB].

Test Report:



GPD-3-02080-E is a 3-Way SMA Power Divider From 2 GHz to 8 GHz Rated at 20 Watts coaxial power divider that covers the frequency range from 4-8GHz. This power divider has a Aluminum housing material and ensures an excellent microwave performance with low insertion loss and VSWR of .This power divider is precisely manufactured to RF industries like military & space, RF communication, test & measurement and industrial applications..
