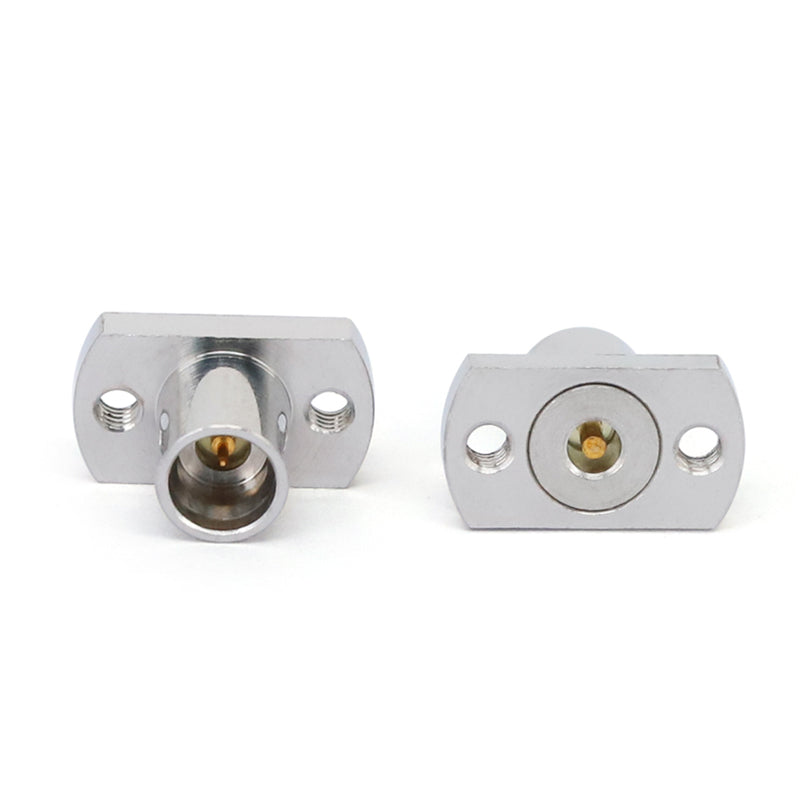

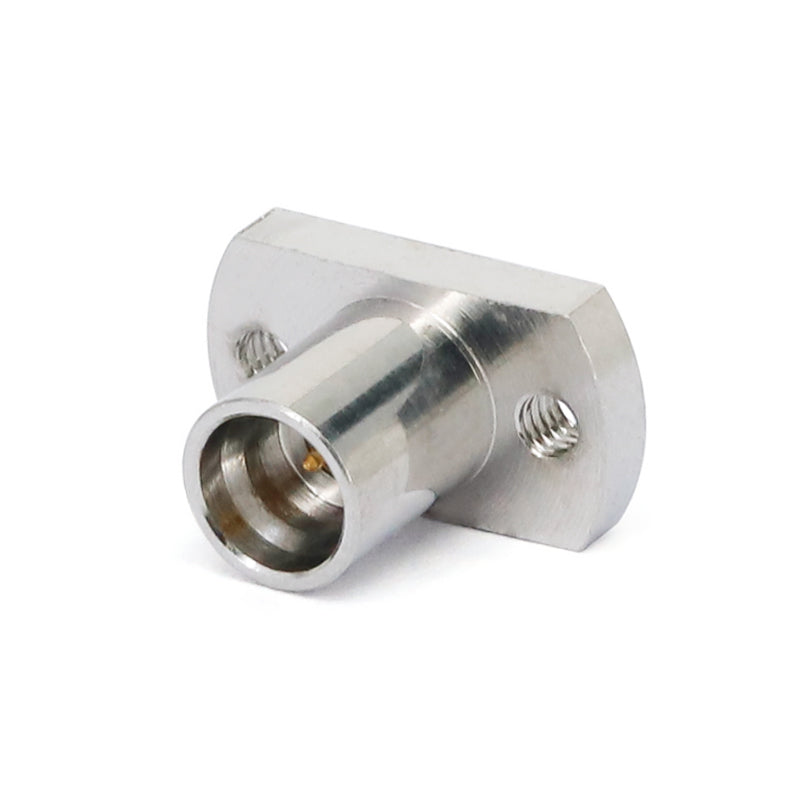

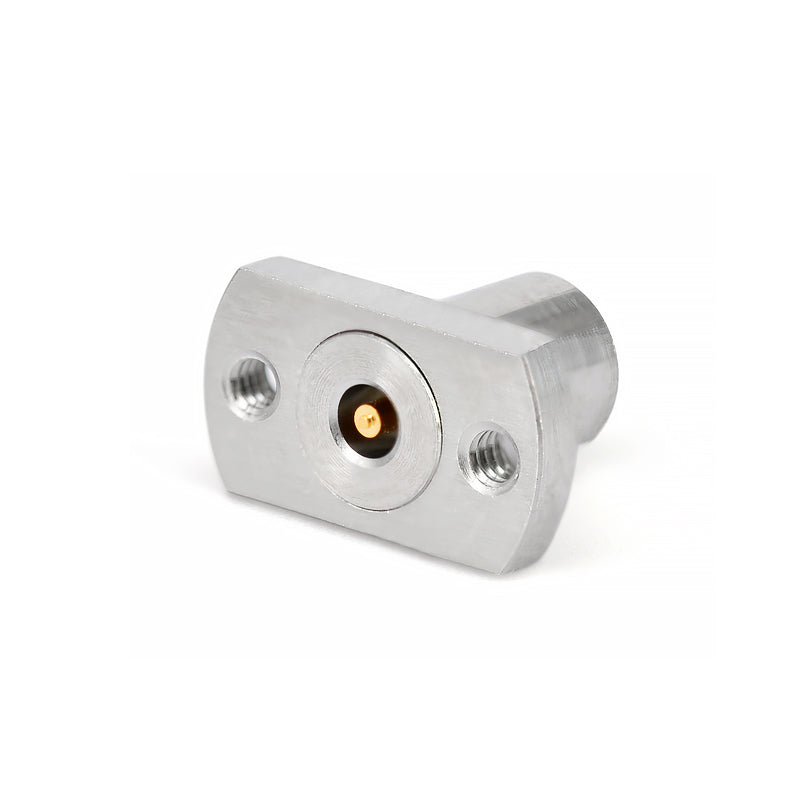

GPO(SMP) Male solderless PCB Compression Mount Connector ｜ 2 Hole Flange ｜ DC-40GHz
Gwave provide 2 types GPO(SMP) Male solderless PCB Compression Mount Connector，Limited Detent and Full Detent Type for different application.
Part Number List:
| GPO-JFD216-1 | Limited Detent |
| GPO-JFD216-1-F | Full Detent |
Specifications:
| Frequency | DC-40GHz |
| VSWR | 14db Max. |
| Insertion Loss | <0.1 xSqt.(f_GHz) |
| Body Material | Stainless Steel |
| Hole Spacing | 7.16mm |
| Operation Temperature | -50~+85deg. |
