2.92mm End Launch Connectors,DC-40GHz
Part Number List:

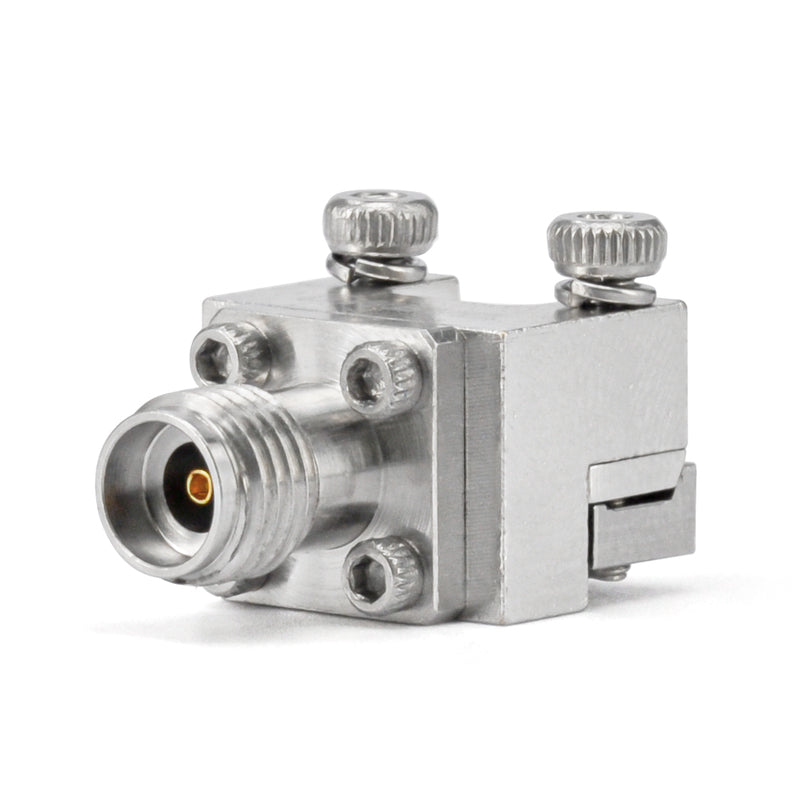

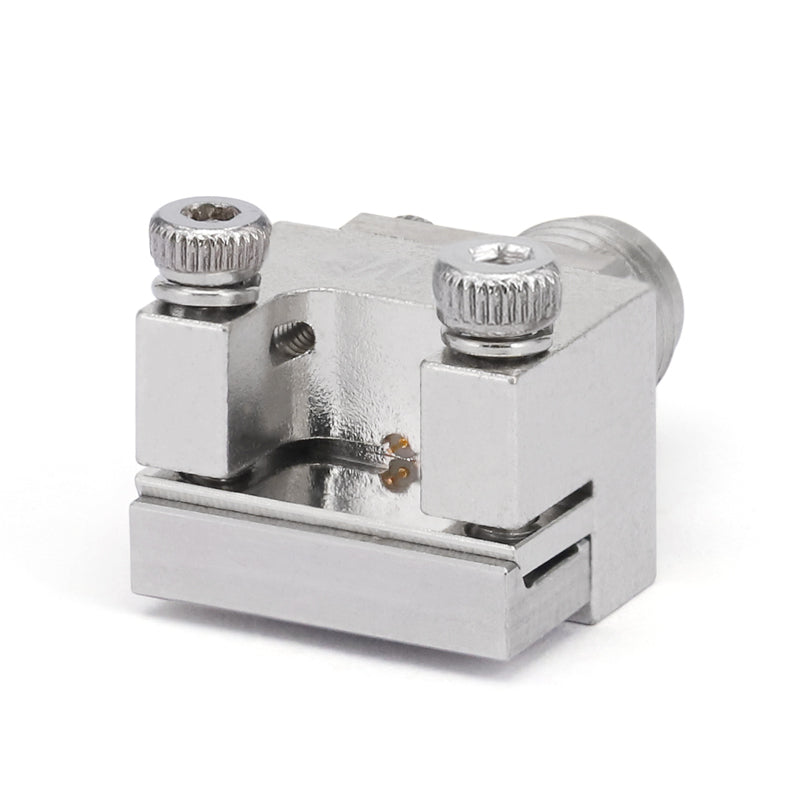

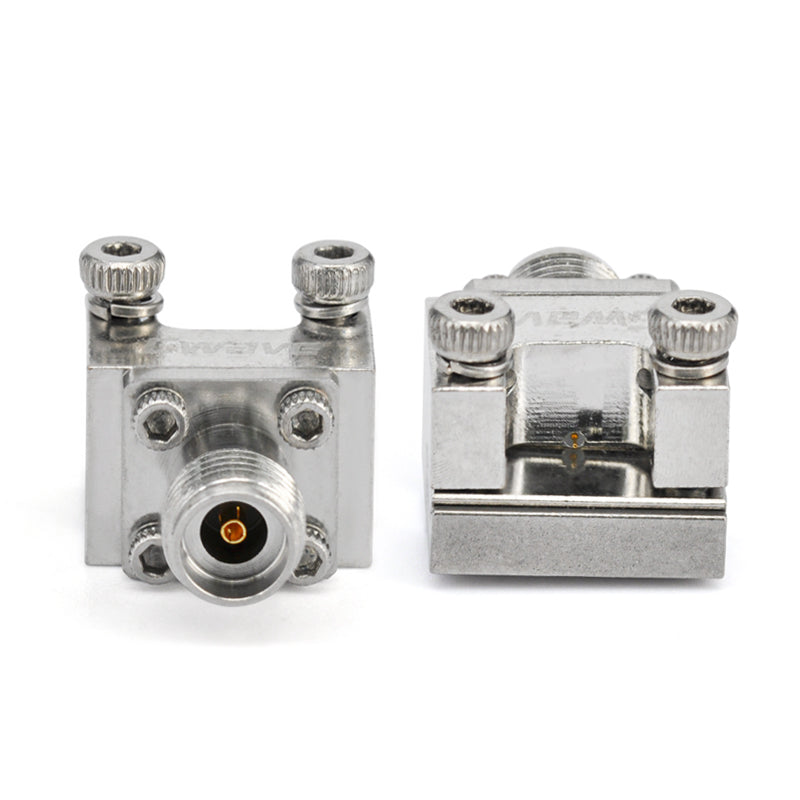

| 2.92-KFD0851 | 2.92mm Female Connector,Center Pin O.D. is 0.51mm |

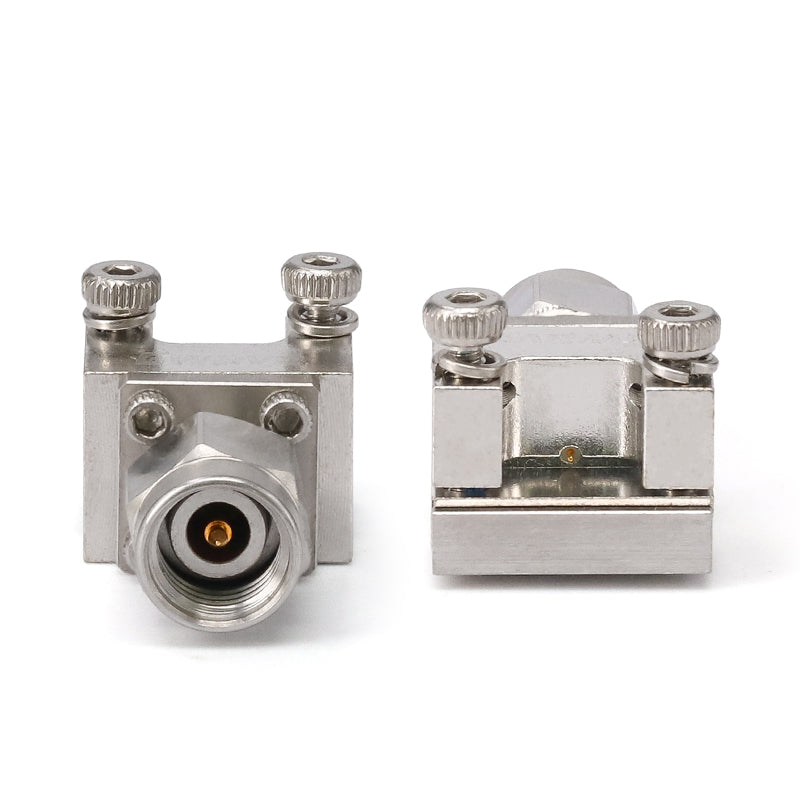

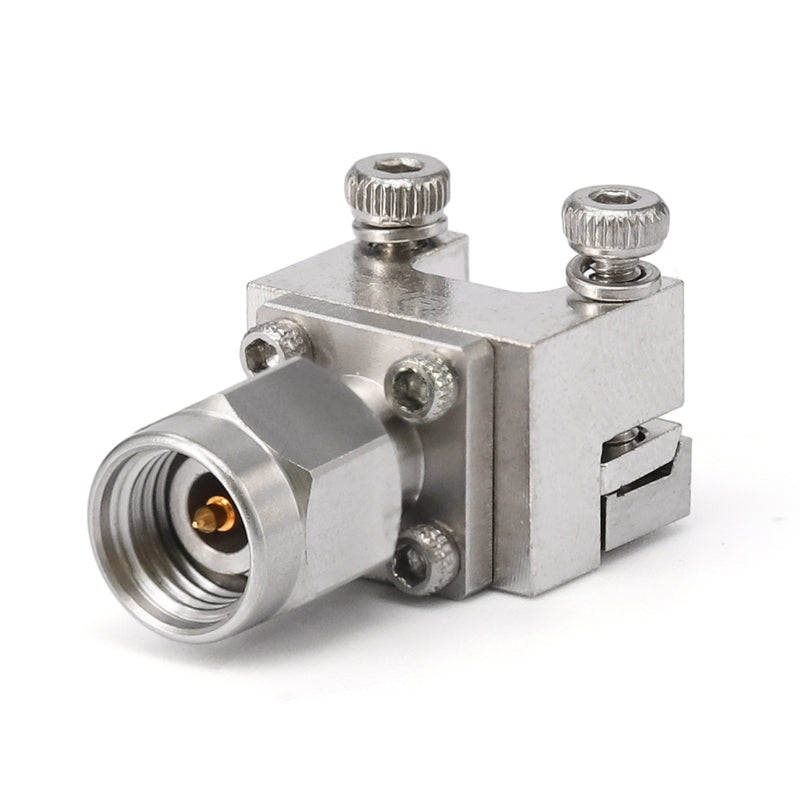

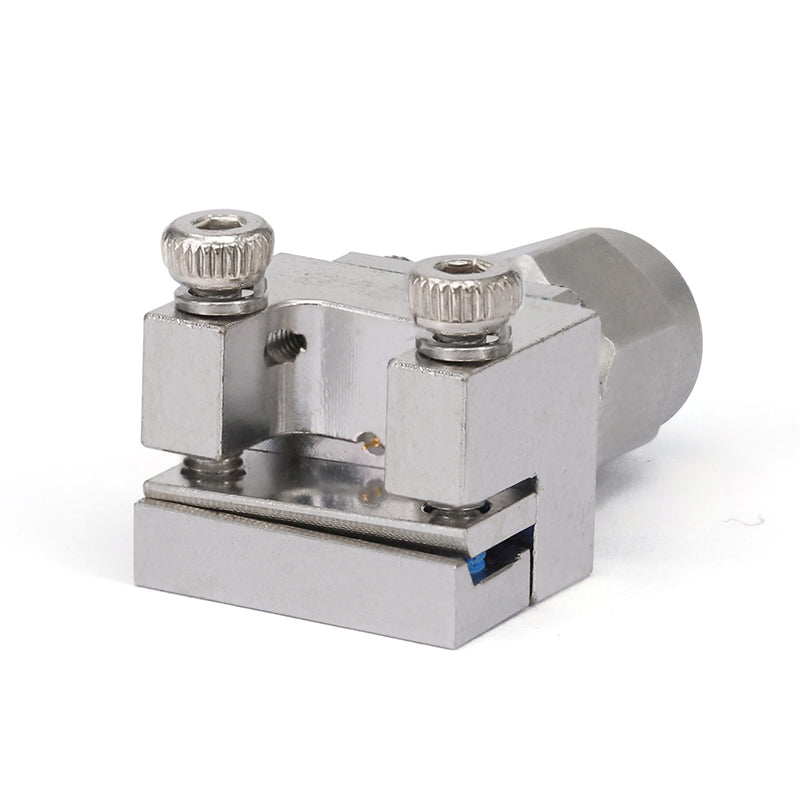

| 2.92-JFD0851 | 2.92mm Male Connector,Center Pin O.D. is 0.51mm |
| 2.92-KFD0830 | 2.92mm Female Connector,Center Pin O.D. is 0.30mm |
| 2.92-JFD0830 | 2.92mm Male Connector,Center Pin O.D. is 0.30mm |
Specifications:
| Frequency | DC-40GHz |
| VSWR | 1.25 |
| Body Material | Stainless Steel |
| Operation Temp. | -40~+85deg. |
High-Performance 2.92mm End Launch Connectors by Gwave Technology
At Gwave Technology, our catalog of interconnect solutions includes connectors i.e., our high-performance 2.92mm end launch connectors, all of which deliver superior performance. Our 2.92mm end launch connectors are specifically designed to provide robust signal integrity with minimal insertion loss, making them a perfect product for high-frequency applications. Whether you're designing high-tech projects, advanced communication systems, test and measurement equipment, or anything else, our 2.92 end launch connectors provide highly dependable and efficient performance!
Designed for precise and enduring utility, our connectors are user-friendly and can withstand the robust usage they will encounter. At Gwave Technology, Inc., we recognize the importance of including only the best components in your projects, making it our mission to deliver the finest-quality products out there. Gwave Technology, Inc.’s line of 2.92 end-launch connectors provides a benchmark in quality and performance. For all your connectivity demands, rest assured in Gwave Technology, Inc.
We Also Recommend
FAQs
How to Install a 2.92 End Launch Connector?
The center pin of the 2.92 End Launch connector should be placed over the signal pad in the PCB. Use screws to lock there while keeping aligned. Ensure that ground connections will solder well for better performance.
What is a 2.92 End Launch Connector?
A 2.92 end launch connector is an RF connector that closely expands the mounting on PCBs. It supports a frequency of up to 40 GHz with a minimal distortion signal and high return loss.
What are the Applications of a 2.92 End Launch Connector?
2.92 end launch connectors are widely used in high-frequency applications like 5G networks, satellite communication, and microwave systems. Ensuring low signal loss and high reliability in demanding RF environments.
How to Choose the Right 2.92 End Launch Connector?
While choosing a 2.92 end launch connector, remember the frequency range, PCB layout, and signal integrity requirements. It will ensure the operation of the system with which it is compatible along with the operating environment to optimize performance.
What are the Benefits of Using a 2.92 End Launch Connector?
The benefits of 2.92 end launch connectors include low insertion loss and high-frequency capability up to 40 GHz. With an edge-mount style, and easy to connect to a PCB, they provide strong, reliable connections.
