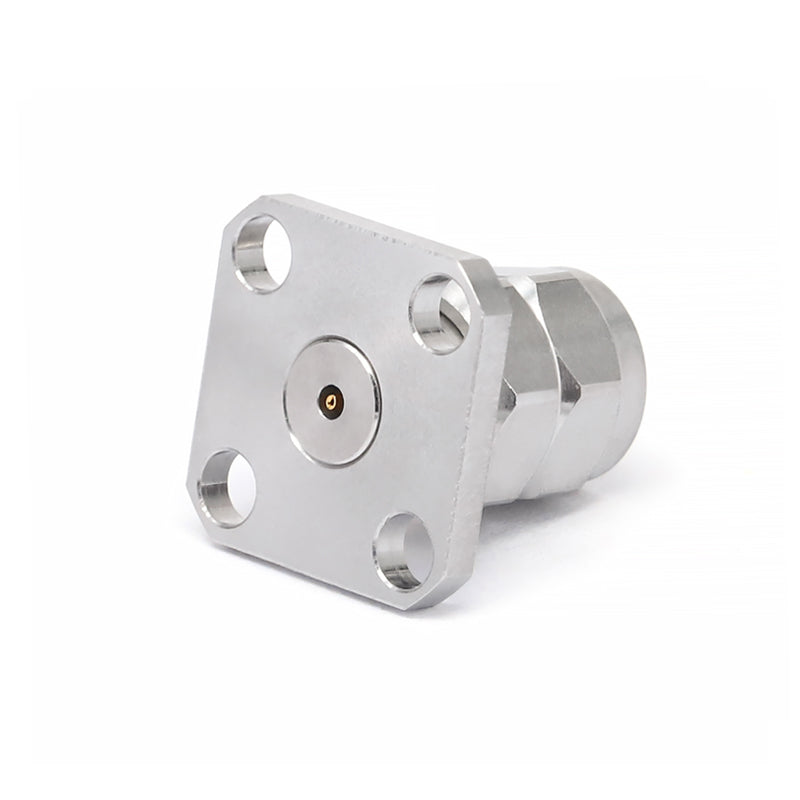

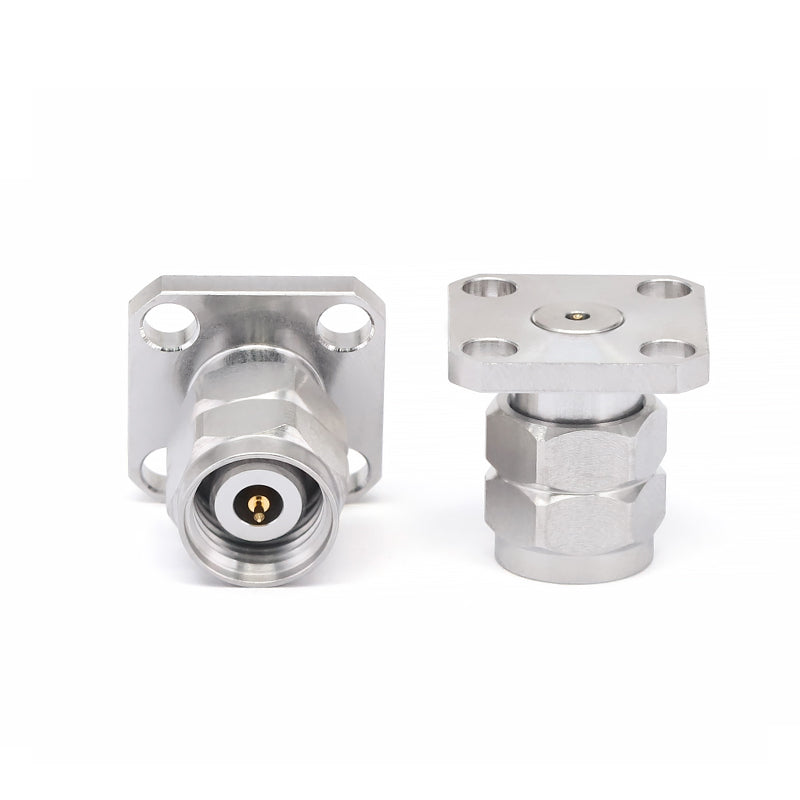

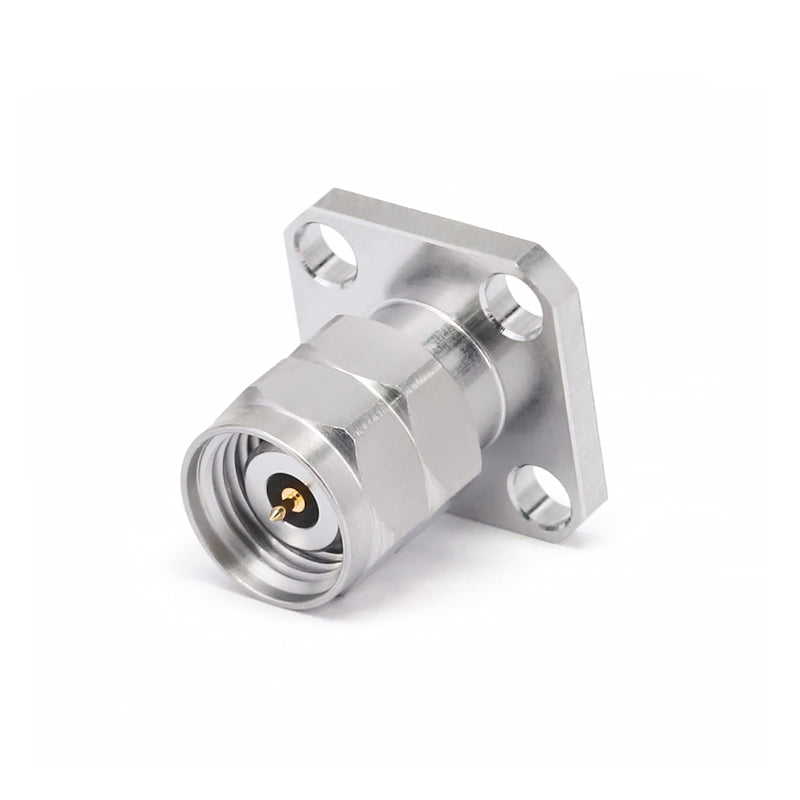

2.4mm Male Field Replaceable Connector with 4 Hole Flange, 8.6mm Hole Spacing,DC-50GHz

  • $36.00
    Unit price per
Shipping calculated at checkout.


These are a group of 2.4mm Male field replaceble connectors with 4-Hole flange. The flange size is 12.7 mmX12.7 mm and the space of flange hole is 8.6 mm . The acceptable pin diameters are 0.23mm, 0.30mm and 0.51mm. They are used with glass beads of corresponding size and available with both male and female connector types.

Part Number List:

2.4-JFD0123 Accepts Pin Diameter:0.23mm
2.4-JFD0130 Accepts Pin Diameter:0.30mm
2.4-JFD0151 Accepts Pin Diameter:0.51mm


Specifications:

Frequency DC-50GHz
Insertion Loss  ≤ 0.05 xSqt.(f_GHz) dB
VSWR 1.15
Body Material Stainless Steel
Mount Method 4-Hole Flange
Size 12.7 mmX 12.7 mm
Operation Temp. -55~+165deg.
