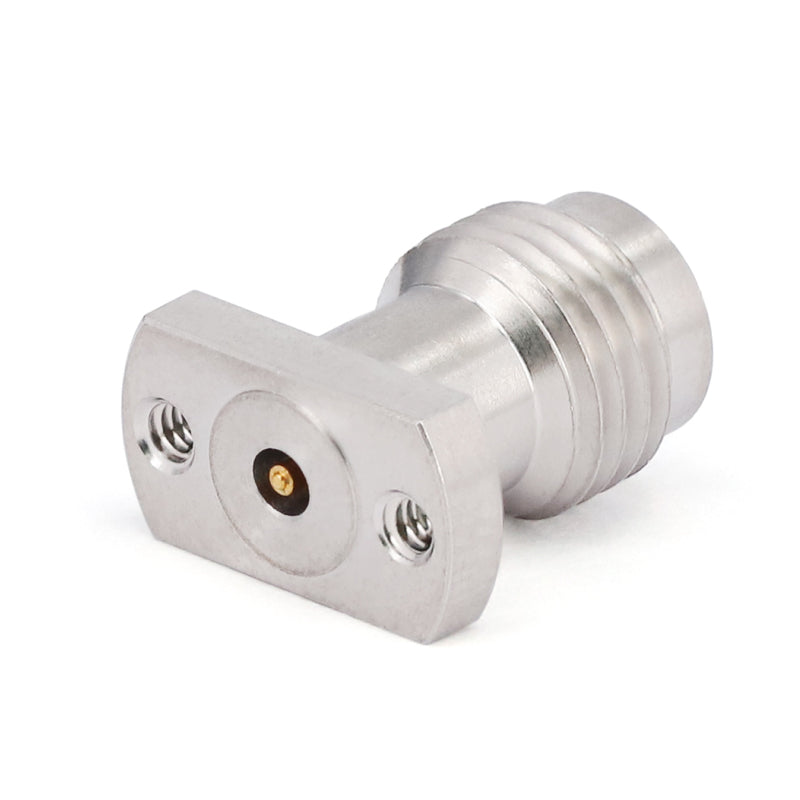

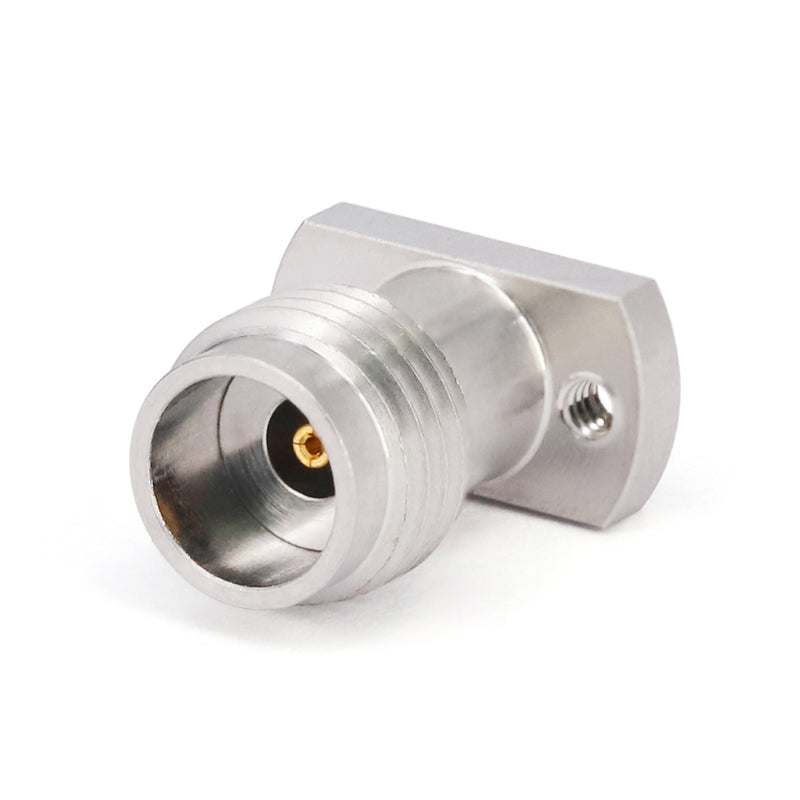

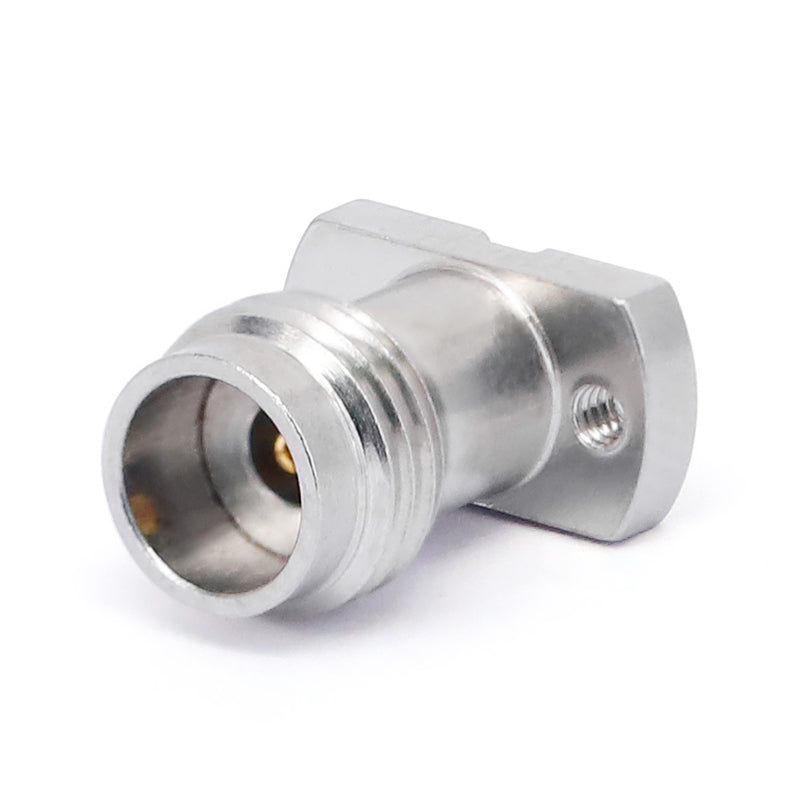

2.4mm Female Solderless PCB Compression Mount Connector ｜ 2-hole Flange ｜ DC-50GHz
Gwave provide 2 types 2.4mm female solderless connectors，as follows
Part Number List:

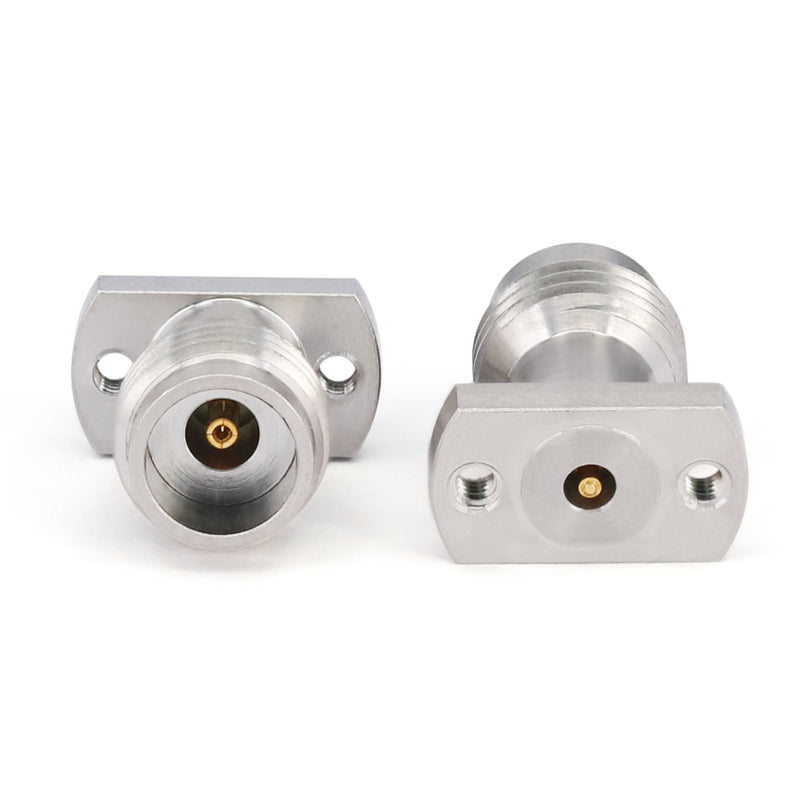

| 2.4-KFD216 | 2.4mm Female Solderless PCB Compression Mount Connector, CPW/Microstrip |

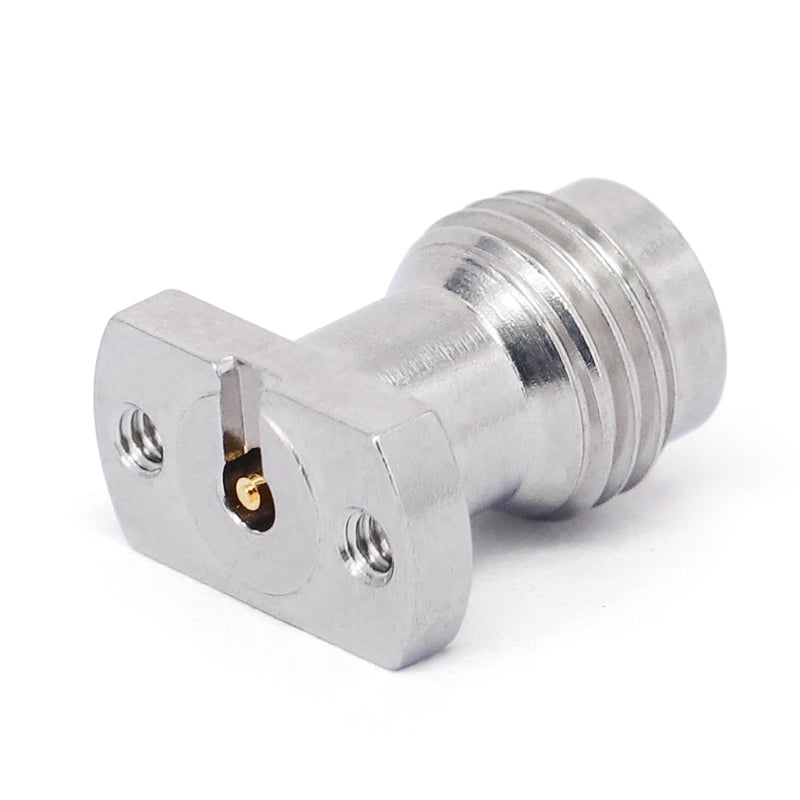

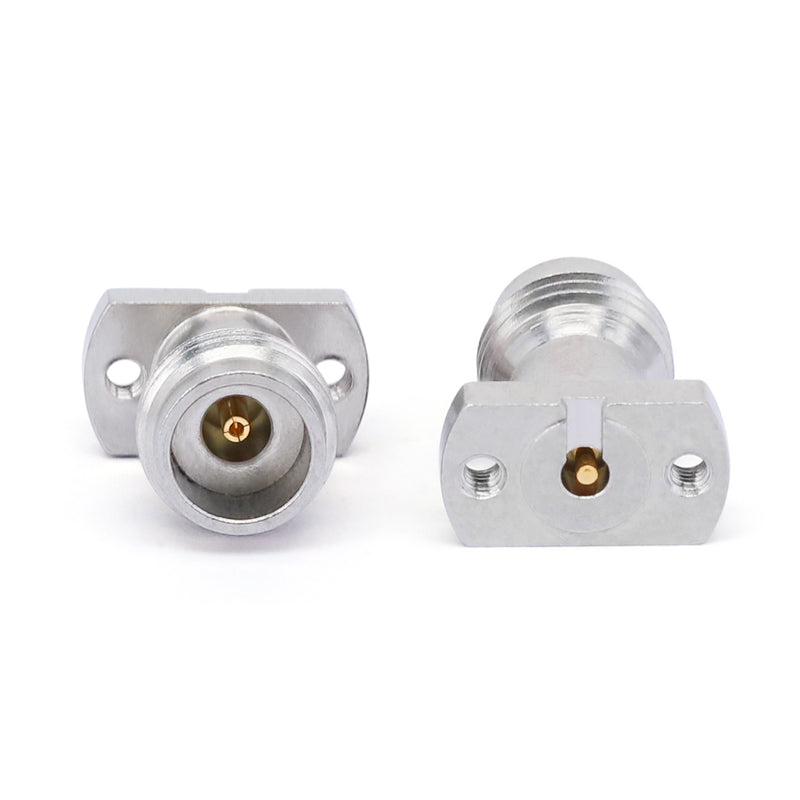

| 2.4-KFD216-1 | 2.4mm Female Solderless PCB Compression Mount Connector, Stripline |
Specifications:
| Frequency | DC-50GHz |
| VSWR | 1.25 |
| Insertion Loss | ≤0.05 xSqt.(f_Ghz) |
| Body Material | Stainless Steel |
| Flange Size | 10.2mmX5.7mm |
| Hole Spacing | 7.15mm |
| Hole Size | 1.6mm |
| Operation Temp. | -40~+125deg. |
Technical Specifications
- Parameter:
