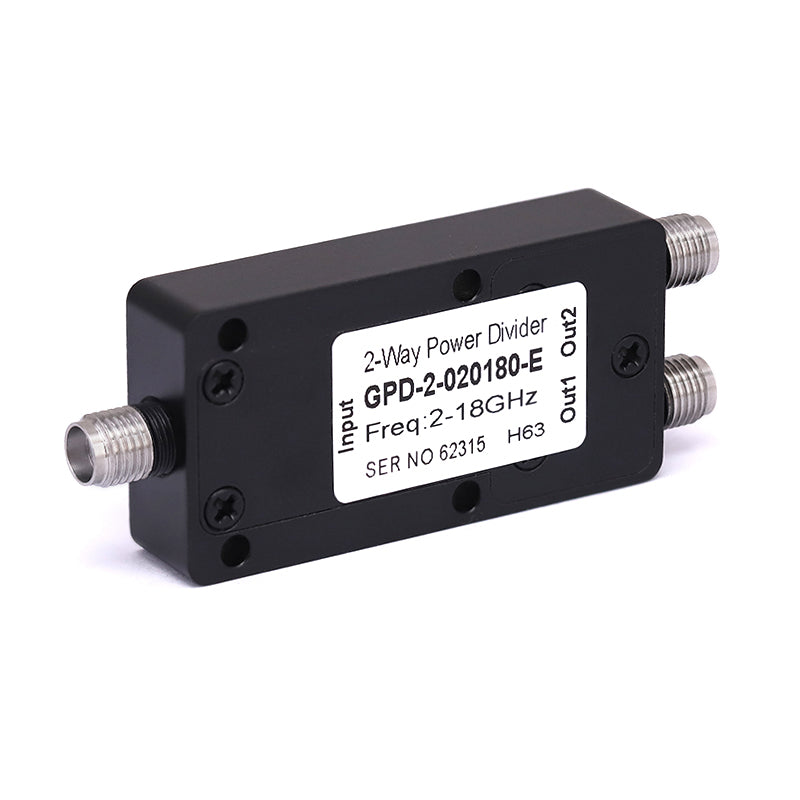

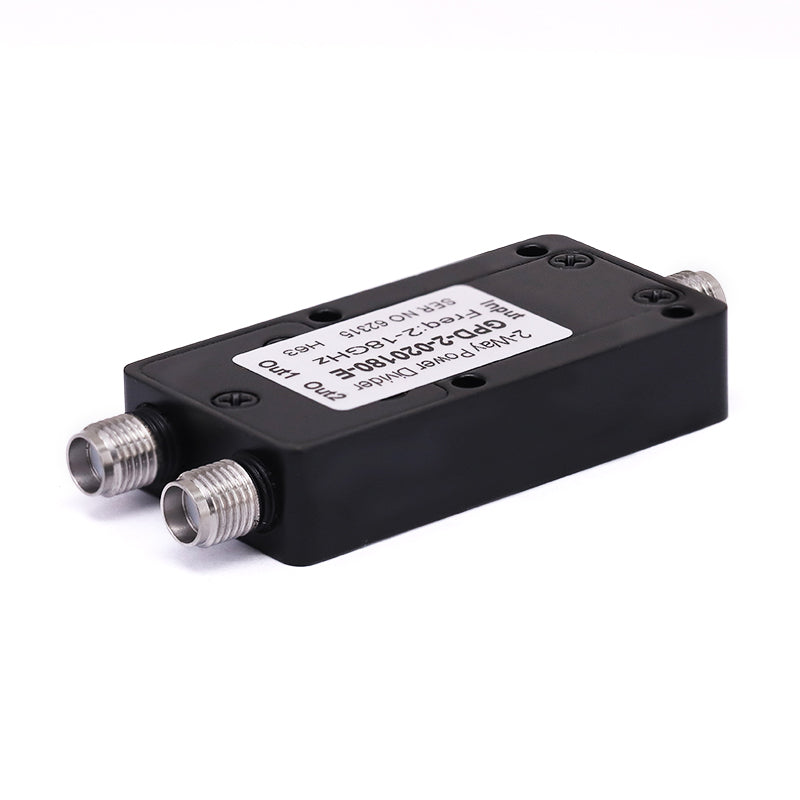

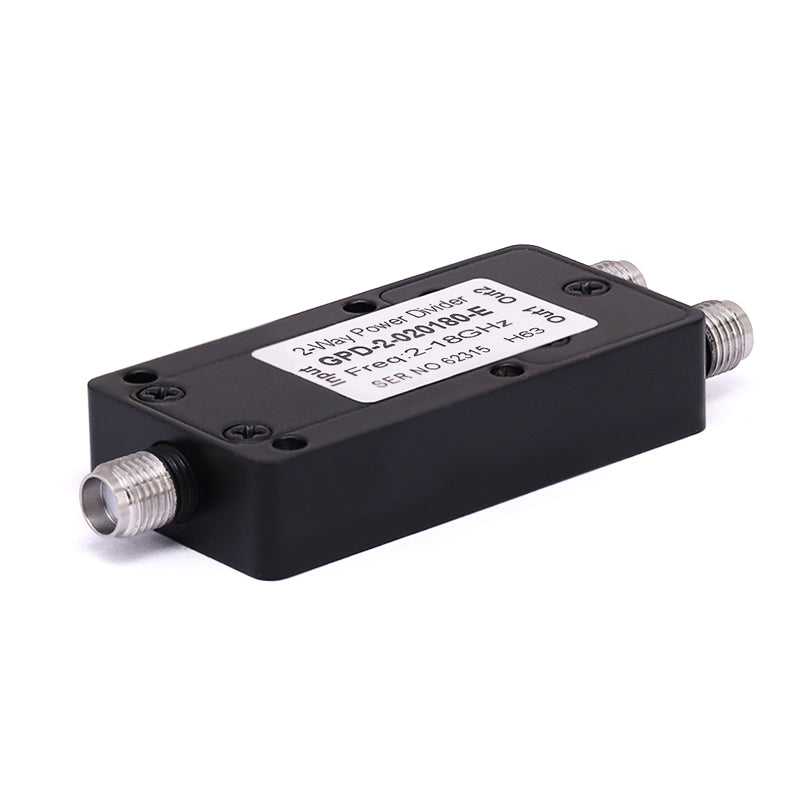

2-Way SMA Power Divider From 2 GHz to 18 GHz Rated at 20 Watts
2-Way SMA Power Divider From 2 GHz to 18 GHz Rated at 20 Watts
2-Way SMA Power Divider From 2 GHz to 18 GHz Rated at 20 Watts

2-Way SMA Power Divider From 2 GHz to 18 GHz Rated at 20 Watts

  • Save $60
Shipping calculated at checkout.

Part Number List:

Part Number Product Description                      View Datasheet
GPD-2-020180-E

2-Way Power Divider, 2-18GHz


Drawing:



Specifications:

Connector In       SMA Female
Connector Out  SMA Female
Insertion Loss ≤1 dB  *
Input Power Handing (CW) Max. 20W
Input VSWR Max. 1.35
Output VSWR Max. 1.3
Frequency Range 2-18GHz
Amplitude Balance  ±0.3dB
Phase Balance ±4°
Isolation Min. 18dB
Weight 31.15g
Housing Material Aluminum
Colour Black

* Notes：Insert loss does not include theoretical power distribution insert loss[3dB].

Test Report:



GPD-2-020180-E is a 2-Way SMA Power Divider From 2 GHz to 18 GHz Rated at 20 Watts coaxial power divider that covers the frequency range from 2-18GHz. This power divider has a Aluminum housing material and ensures an excellent microwave performance with low insertion loss and VSWR of .This power divider is precisely manufactured to RF industries like military & space, RF communication, test & measurement and industrial applications..
