2.4mm Male to G3PO Female using Flexiform 405 FJ Semi-flexible Cable ｜ DC-50GHz
Datasheet:
Part Number List:
| Product Model | Length (mm) | Length Tolerance (mm) | Frequency | VSWR / Return Loss | Insertion Loss ≤ (dB) |
| GA712-24MG3PF-100 | 100 | ±3 | DC - 50GHz | 12 dB to 50GHz | 1.40 to 50GHz |
| GA712-24MG3PF-150 | 150 | ±3 | DC - 50GHz | 12 dB to 50GHz | 1.75 to 50GHz |
| GA712-24MG3PF-200 | 200 | ±3 | DC - 50GHz | 12 dB to 50GHz | 2.10 to 50GHz |
| GA712-24MG3PF-250 | 250 | ±3 | DC - 50GHz | 12 dB to 50GHz | 2.45 to 50GHz |
| GA712-24MG3PF-300 | 300 | ±5 | DC - 50GHz | 12 dB to 50GHz | 2.80 to 50GHz |
| GA712-24MG3PF-400 | 400 | ±5 | DC - 50GHz | 12 dB to 50GHz | 3.45 to 50GHz |
| GA712-24MG3PF-500 | 500 | ±5 | DC - 50GHz | 12 dB to 50GHz | 4.10 to 50GHz |

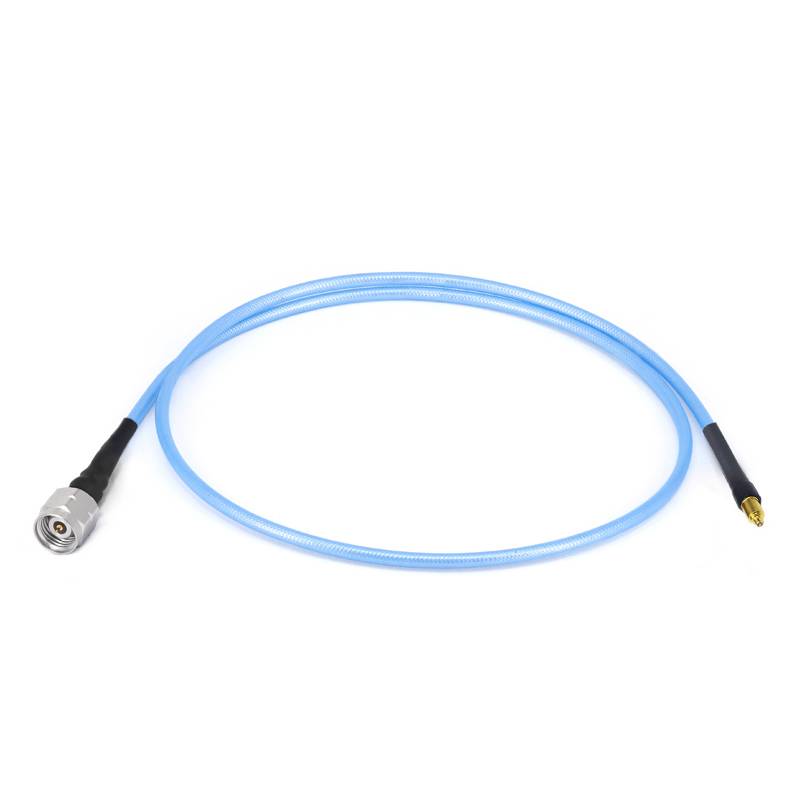

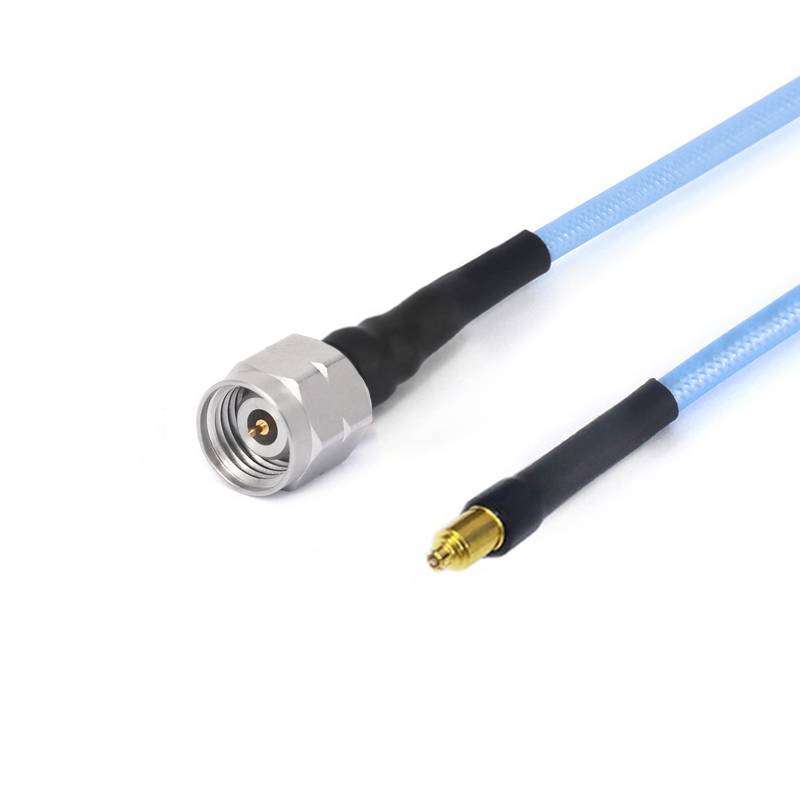

The GA712-24MG3PF Series is a high-performance 2.4mm male to G3PO (SMPS) female RF cable assembly, designed for broadband applications up to 50 GHz. Built with a .086″ semi-flexible coaxial cable and a durable FEP jacket, this assembly delivers excellent electrical stability, low insertion loss, and repeatable performance in demanding high-frequency environments.
Featuring 50-ohm impedance, precision-machined connectors, and robust shielding effectiveness, the GA712-24MG3PF series ensures reliable signal integrity across DC to 50 GHz. The semi-flexible cable construction provides improved phase stability and mechanical durability, making it suitable for both laboratory and production use.
These cable assemblies are ideal for test and measurement systems, millimeter-wave applications, ATE systems, and other high-frequency RF and microwave interconnect solutions where consistent electrical performance and compact routing are required. Custom cable lengths are available to meet specific system integration needs.
