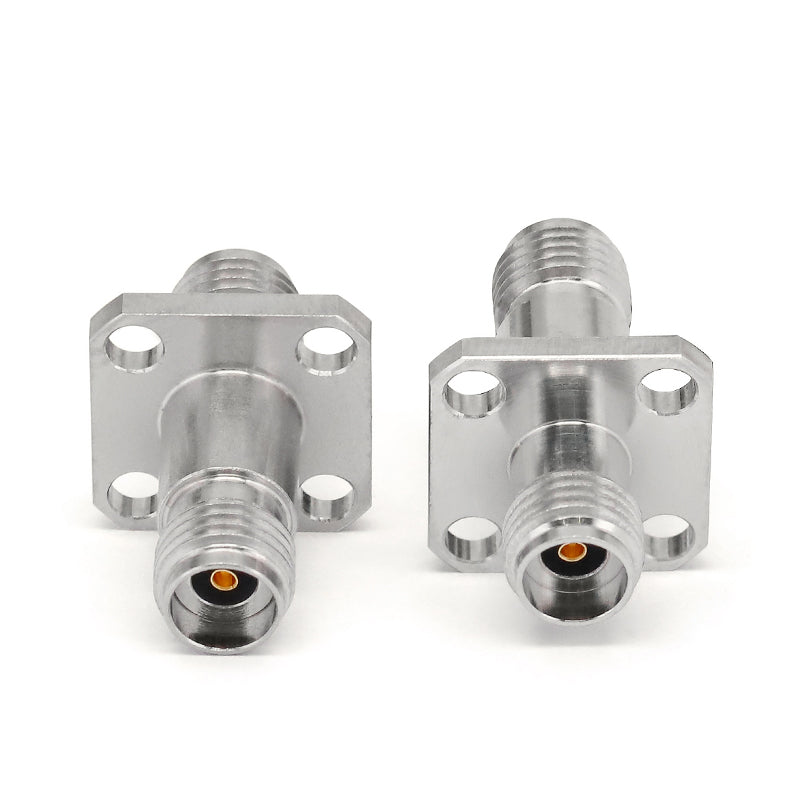

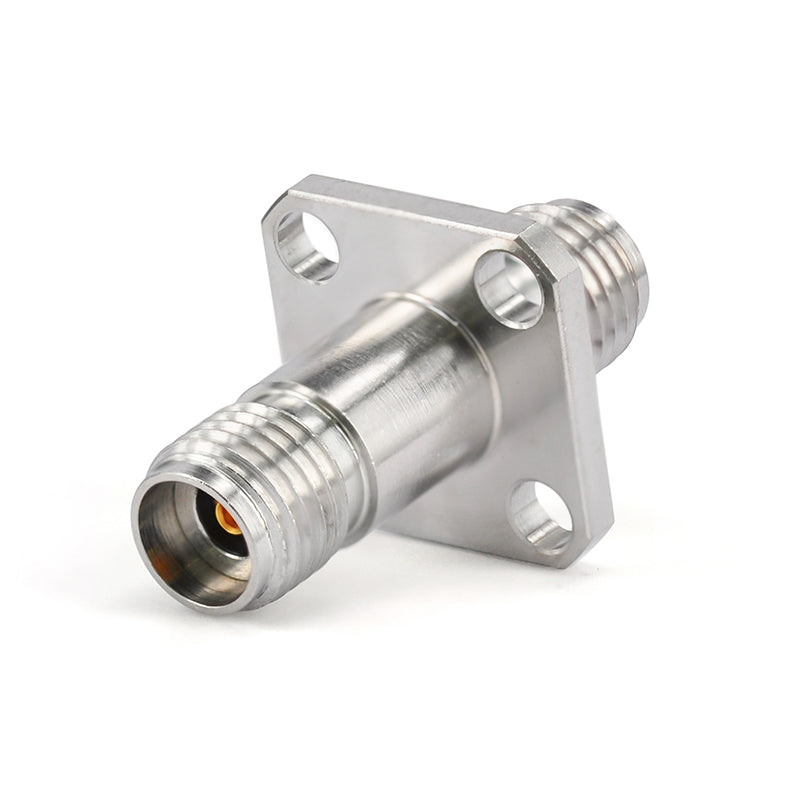

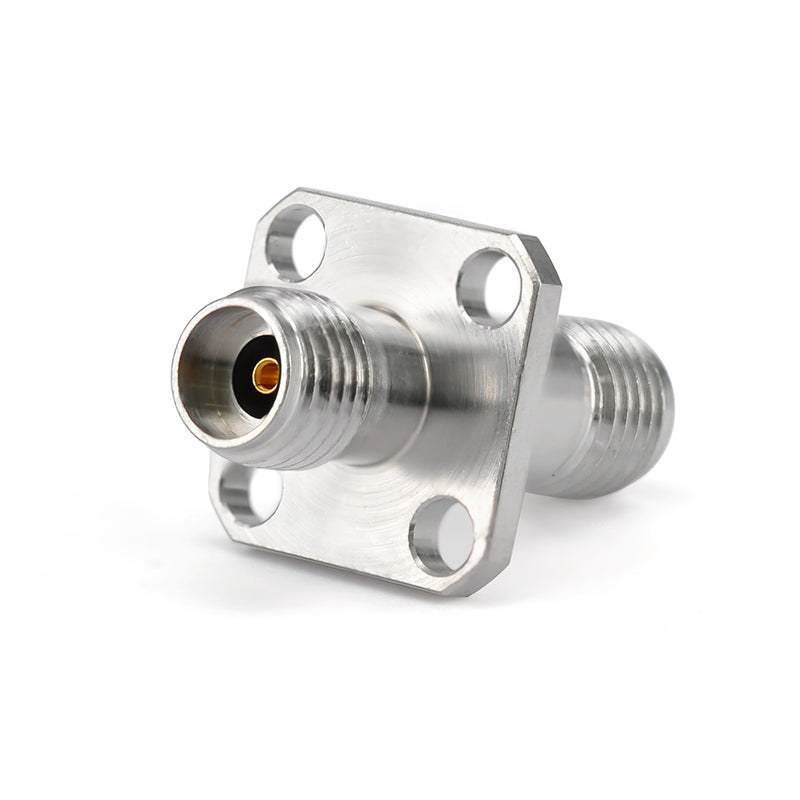

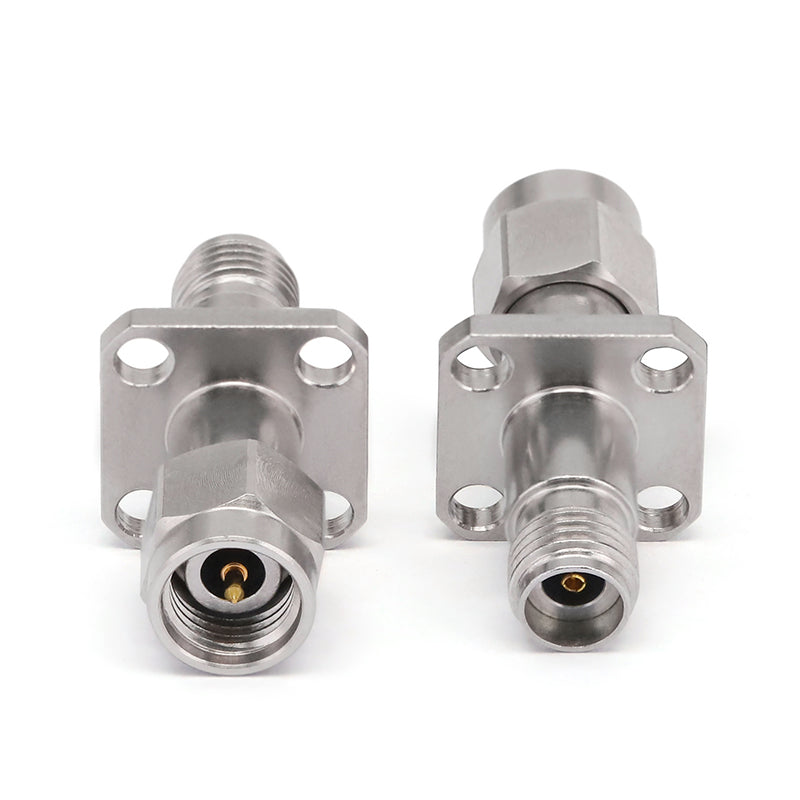

2.92mm Female to 2.92mm Female 4-Hole Flange Adaptors ｜ DC-40GHz
Part Number List:
| 2.92-KFKG | 2.92mm Female to 2.92mm Female 4-Hole Flange Adaptor |
| 2.92-JFKG | 2.92mm Male to 2.92mm Female 4-Hole Flange Adaptor |
Specifications:
| Frequency | DC-40GHz |
| VSWR | 1.25 Max. |
| Insertion Loss | <0.05 xSqt.(f_GHz) |
| Body Material | Stainless Steel |
| Flange Size | 12.7mmX12.7mm |
| Hole Spacing | 8.6mmX8.6mm |
| Operation Temperature | -50~+85deg. |
