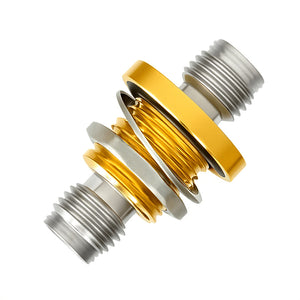

1.85 Female to 1.85 Female Hermetically Sealed Bulkhead Mount Adaptor, DC - 67GHz
Part Number List:
| 1.85(M)-KYKE | 1.85mm Female to 1.85mm Female, Bulkhead Mount |
Specifications:
| Frequency | DC-67GHz |
| VSWR | 1.5 Max. |
| Insertion Loss | <0.1 xSqt.(f_GHz) |
| Body Material | Stainless Steel |
| Operation Temperature | -55~+165deg. |
| Hermetic Seal | 1^10(-8) cc/sec of Helium at 1 ATM |
| Weight | 7.2g |
