2.92mm Female Connector with 4-hole Flange ｜ Hole Spacing 6.35mm ｜ Metal Through-plate ｜ DC-40GHz

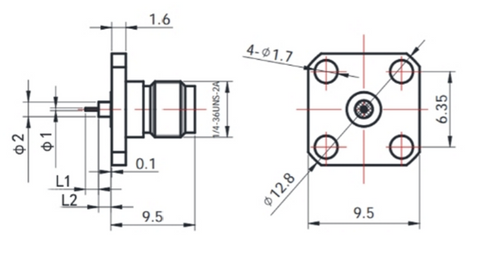

Gwave provide a group of 2.92mm Female Flange Mount and Metal through-plate connectors, using frequency up to 40GHz. This series of connectors have 4-Hole flange, flange size is 9.5mmX 9.5mm and the space of flange hole is 6.35 mm . They have different Through-plate matel diameter and length, different tail Pin diameter and Length. Please refer to the picture, drawing and the corresponding size to select the product you need.
Part Number List:

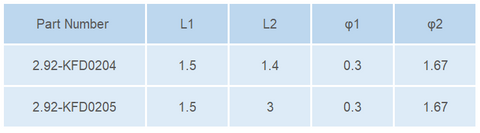

| 2.92-KFD0204 | Φ1=0.3mm,Φ2=1.67mm, L1=1.5mm,L2=1.4mm |
| 2.92-KFD0205 | Φ1=0.3mm,Φ2=1.67mm, L1=1.5mm,L2=3mm |
Specifications:
| Frequency | DC-40GHz |
| Insertion Loss | ≤ 0.05 xSqt.(f_GHz) dB |
| VSWR | 1.15 |
| Body Material | Stainless Steel |
| Mount Method | 4-Hole Flange |
| Size | 9.5mmX 9.5mm |
| Operation Temp. | -55~+165deg. |
