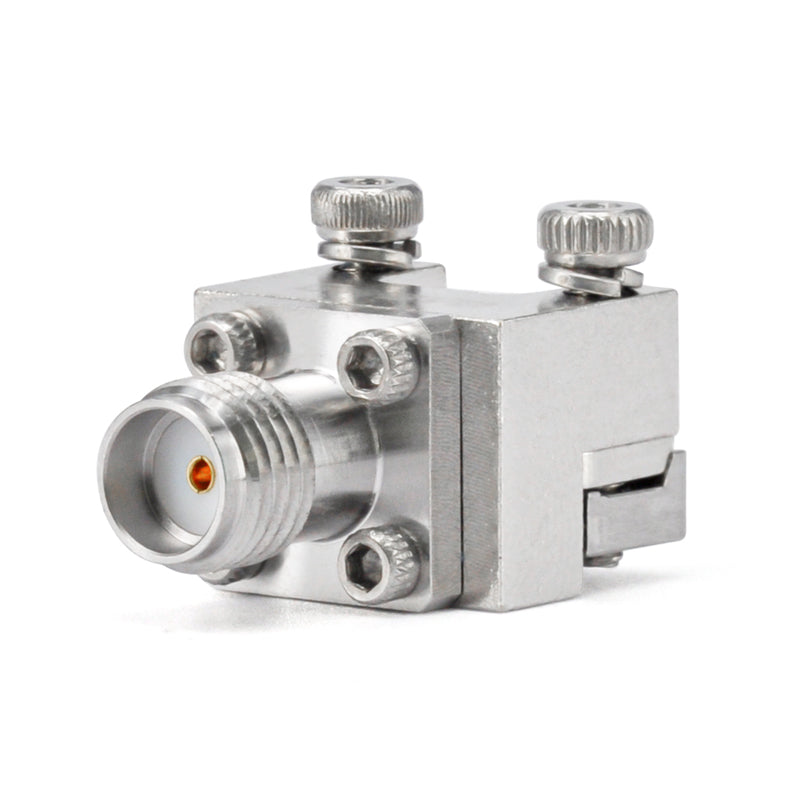

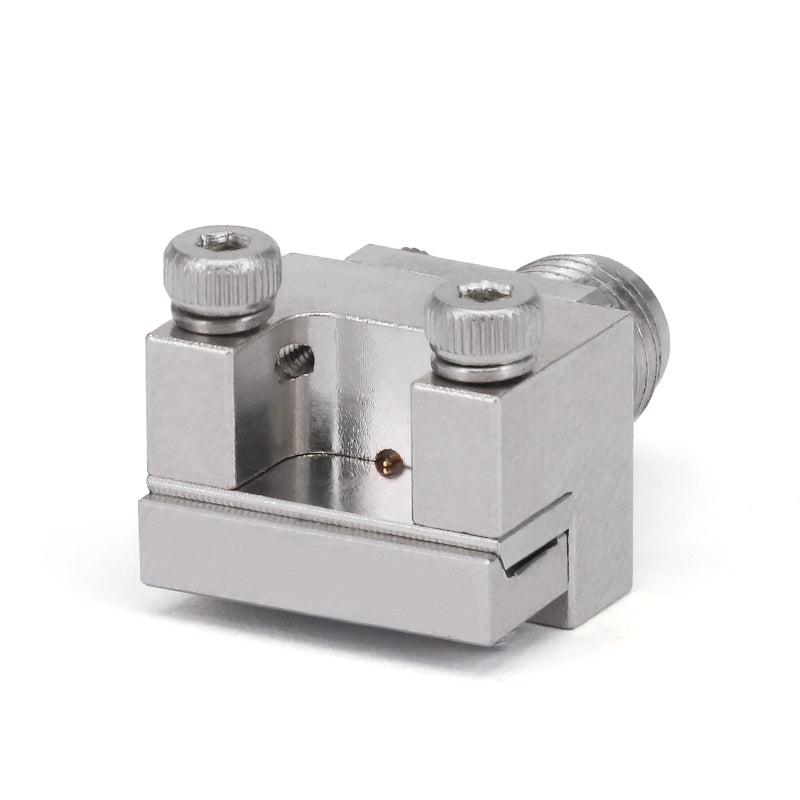

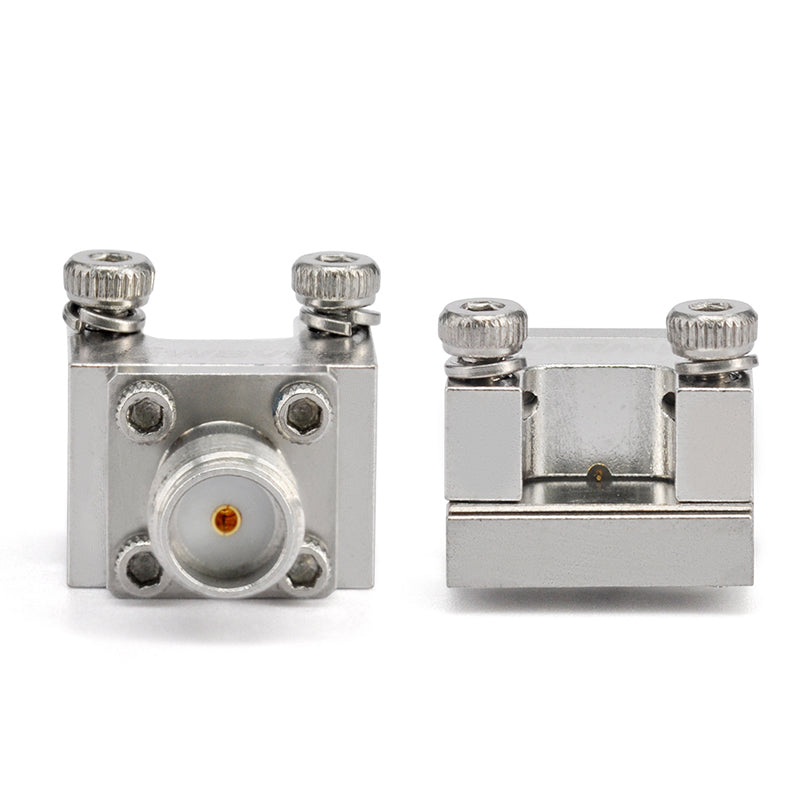

SMA Solderless End Launch Female Connectors,DC-26.5GHz
SMA Solderless End Launch Female Connectors,DC-26.5GHz
SMA Solderless End Launch Female Connectors,DC-26.5GHz
SMA Solderless End Launch Female Connectors,DC-26.5GHz

SMA Solderless End Launch Female Connectors,DC-26.5GHz

  • Save $8.86
Shipping calculated at checkout.

Part Number List:

SMA-KFD0851 2-Hole Flange, Hole Spacing is 9.5mm,Center Pin O.D. is 0.51mm
SMA-KFD0830 2-Hole Flange, Hole Spacing is 9.5mm,Center Pin O.D. is 0.3mm


Specifications:

 Frequency DC-26.5GHz
VSWR 1.25
Body Material Stainless Steel
Operation Temp. -40~+165deg.
